Removal And Installation

Disconnect the battery negative (-) terminal.
(Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")
Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

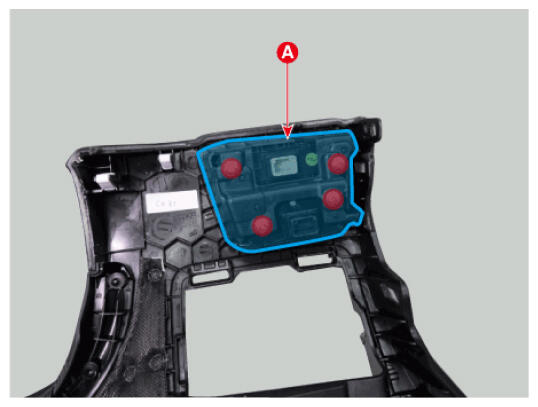

Remove the crash pad lower switch (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA

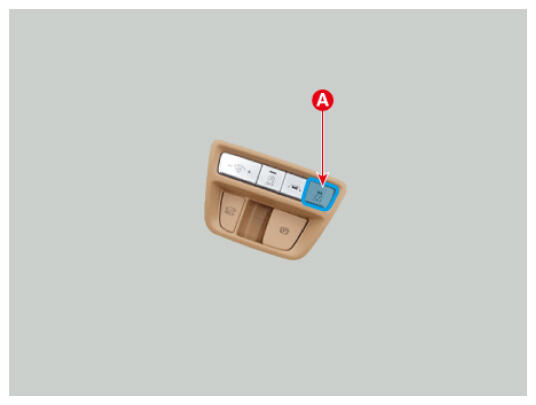

Remove the VDC OFF switch (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA
install, reverse the removal procedures.
