Removal And Installation
- Disconnect the battery negative (-) terminal.
(Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")
CAUTION:- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery)
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery)
- Loosen the rear wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")

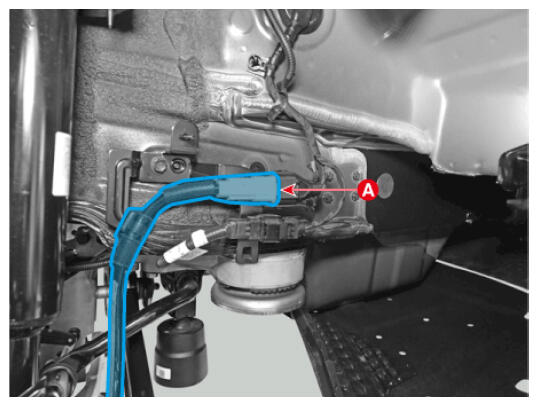

- Disconnect the EPB actuator connector (A).
- Remove the rear wheel guard.
(Refer to Body (Interior and Exterior) - "REAR WHEEL GUARD ")

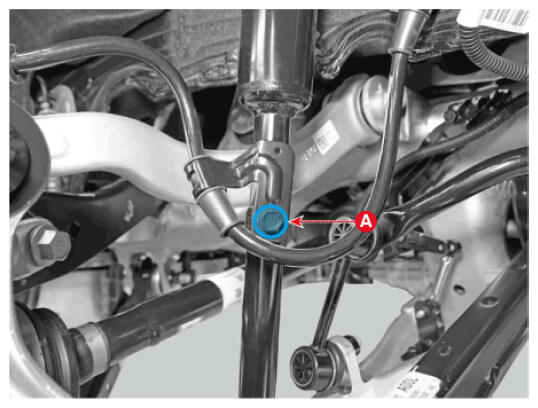

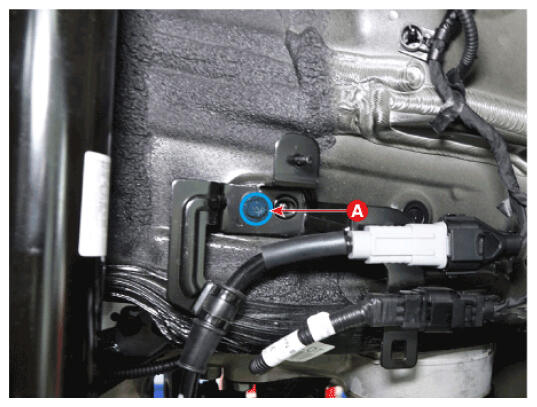

- Disconnect the rear wheel speed sensor & EPB wiring connector (A).

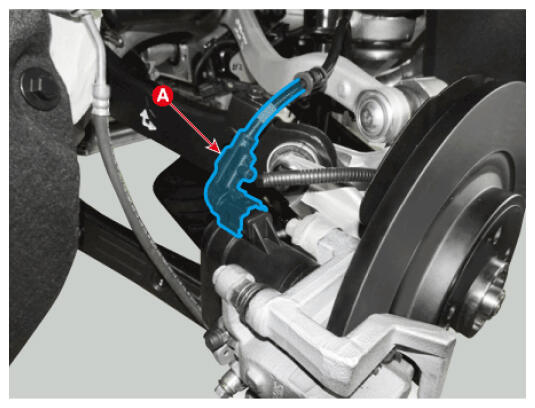

- Loosen the rear wheel speed sensor bracket mounting bolts (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

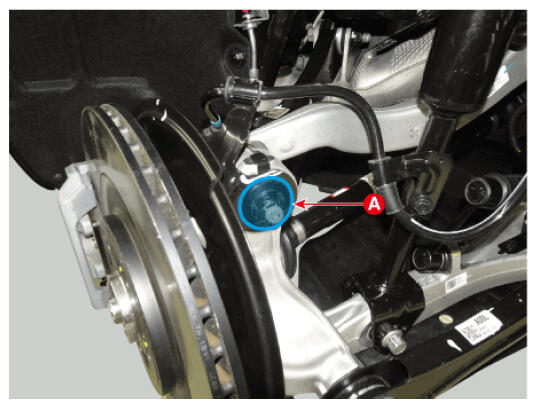

- Remove the wheel speed sensor bracket after loosening the rear upper arm rear mounting nut (A).

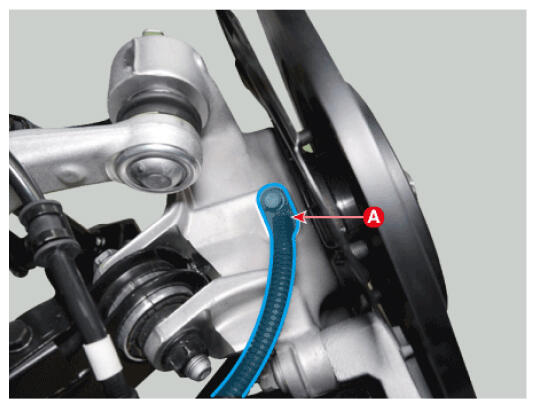

- Remove the rear wheel speed sensor (A) after loosening the mounting bolt.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- To install, reverse the removal procedures.
- Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
