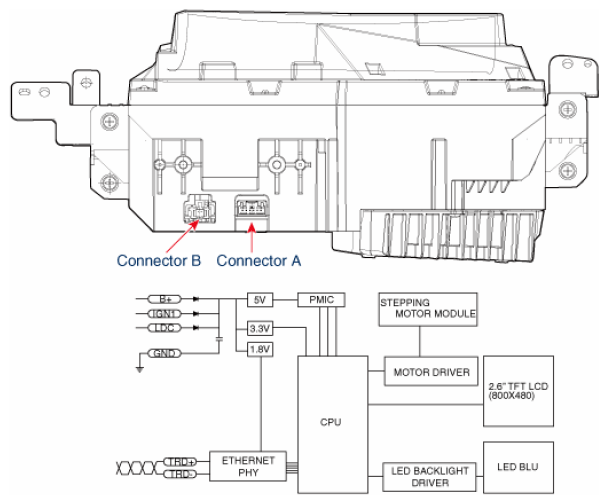

Components And Components Location: Component

G16877073Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G16877074Courtesy of HYUNDAI MOTOR AMERICA
1 Ground
2 -
3 -
4 LCD (B+) input
5 IGN 1
6 Battery (+)
Connector B  Pin  Description
G16877075Courtesy of HYUNDAI MOTOR AMERICA
1 Ethernet (+)
2 Ethernet (-)
