Components And Components Location: Components

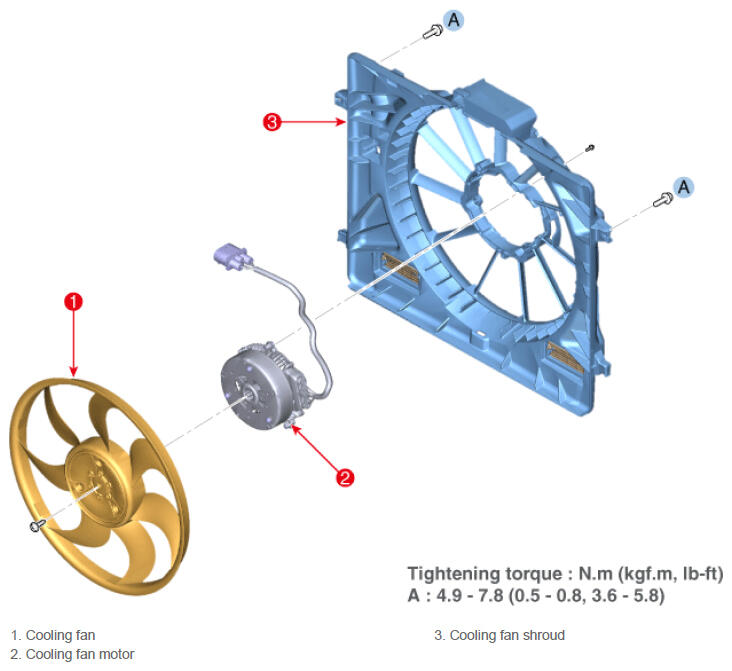

Fig 1: Cooling Fan Components Location With Torque Specifications
G16878036Courtesy of HYUNDAI MOTOR AMERICA
