Components And Components Location: Components

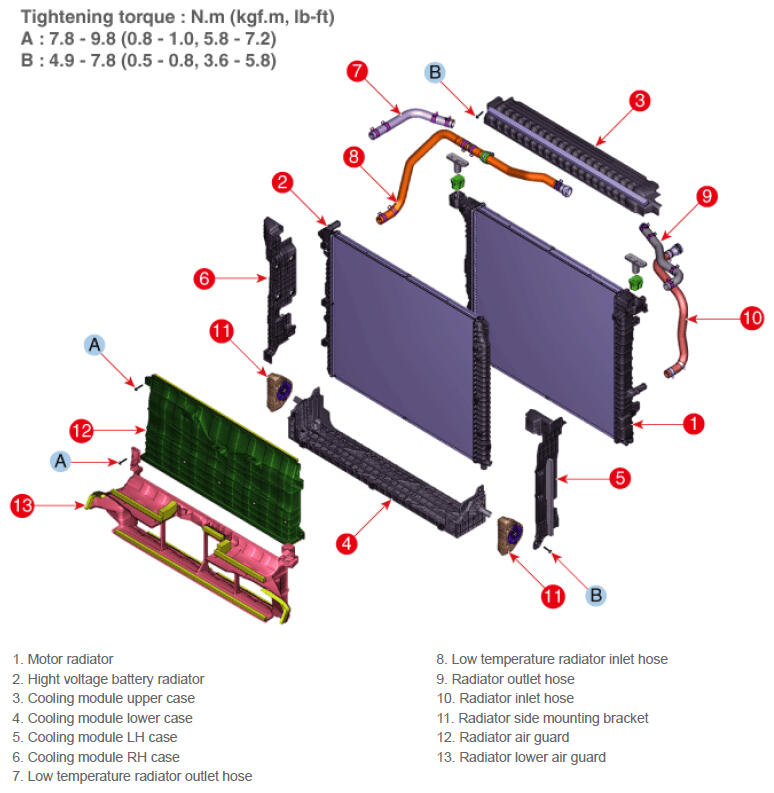

Fig 1: Radiator Components Location With Torque Specifications
G16878046Courtesy of HYUNDAI MOTOR AMERICA
