[Front Oil Temperature Sensor]

CAUTION:
  • When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery).

(Refer to General Information - "LIFT AND SUPPORT POINTS ")
  1. Disconnect the battery negative terminal.

    (Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")

  2. Remove the front under cover.

    (Refer to Front Motor and Reduction Gear System - "FRONT UNDER COVER ")

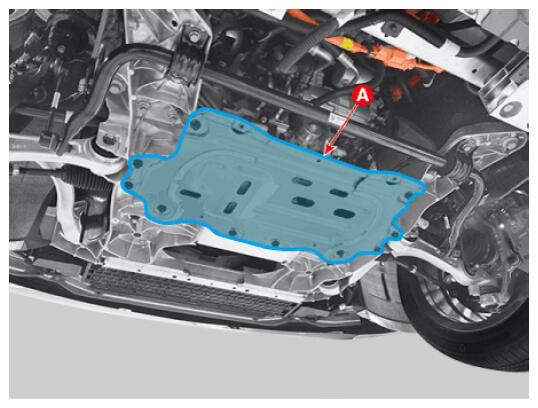

  3. Remove the cover (A).
    G16878396Courtesy of HYUNDAI MOTOR AMERICA

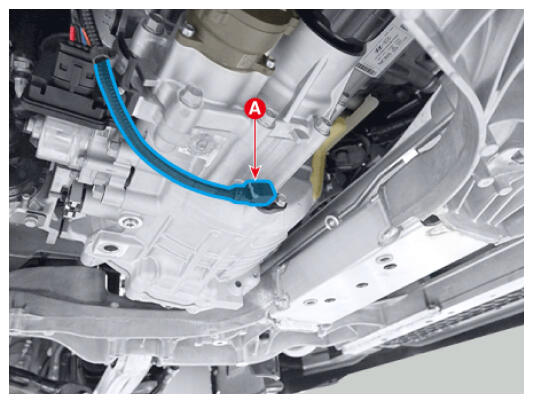

  4. Disconnect the oil temperature sensor connector (A).
    G16878397Courtesy of HYUNDAI MOTOR AMERICA

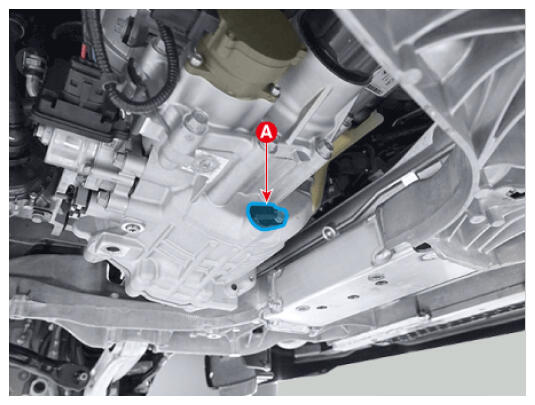

  5. Remove the oil temperature sensor (A).
    G16878398Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedures
NOTE:

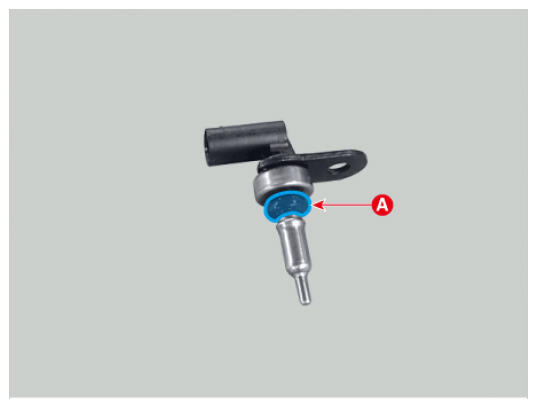

  • Replace the O-ring (A) with a new one.
G16878399Courtesy of HYUNDAI MOTOR AMERICA
