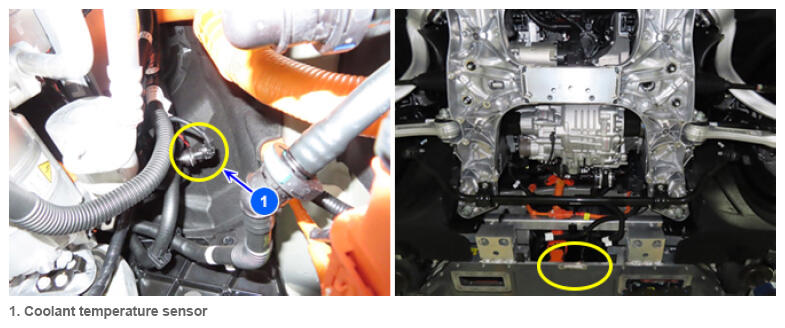

Coolant Temperature Sensor

Courtesy of HYUNDAI MOTOR AMERICA

The coolant temperature sensor has a thermistor with a negative temperature coefficient (NTC) characteristic. The resistance of the NTC thermistor decreases with increasing temperature and increases with decreasing temperature.
