Smart Key Code Saving

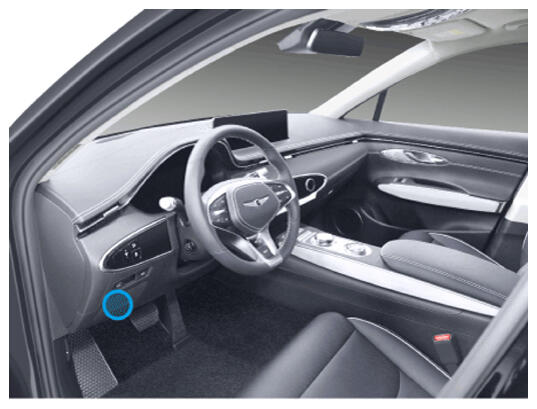

  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
    G16820127Courtesy of HYUNDAI MOTOR AMERICA

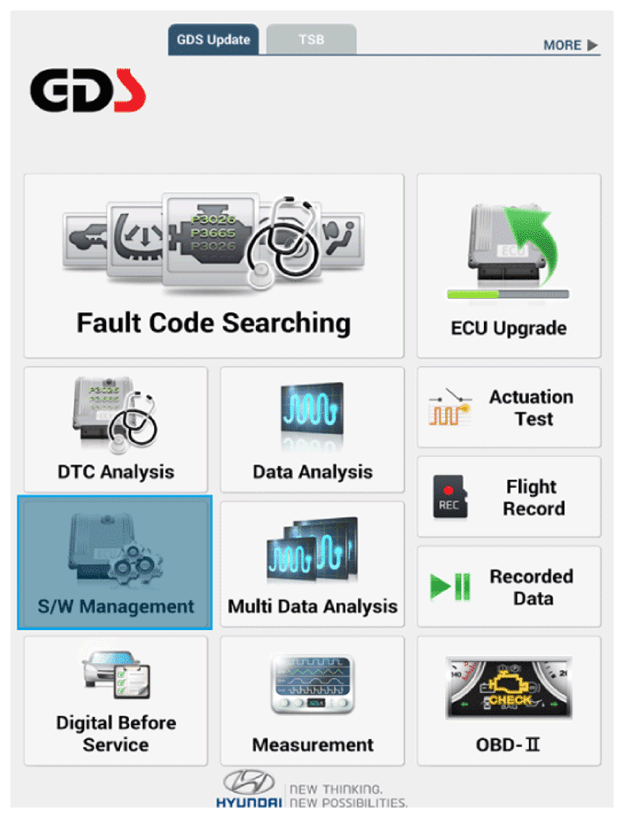

  2. Select the 'S/W Management' and 'Car model'.
    G16820128Courtesy of HYUNDAI MOTOR AMERICA

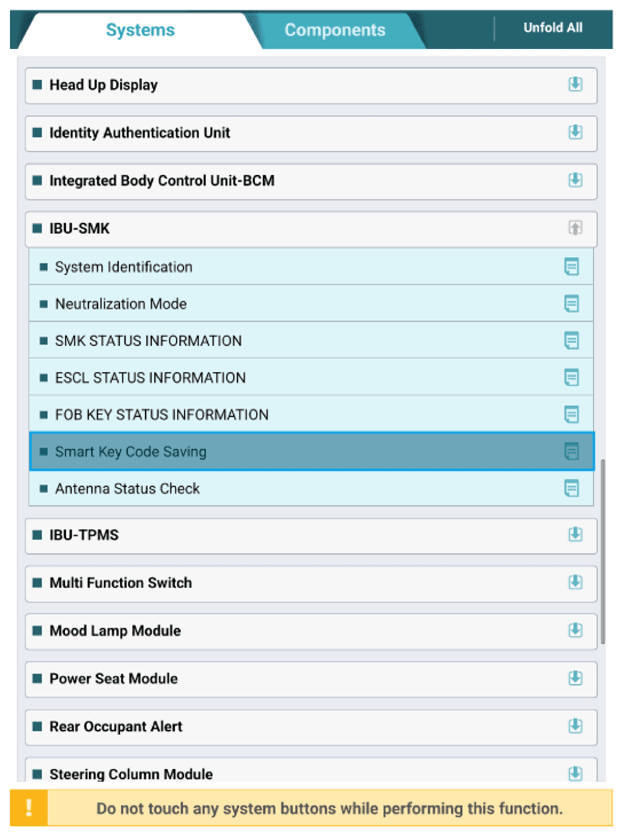

  3. Select the 'IBU-SMK' and 'Smart Key Code Saving'.
    G16820129Courtesy of HYUNDAI MOTOR AMERICA

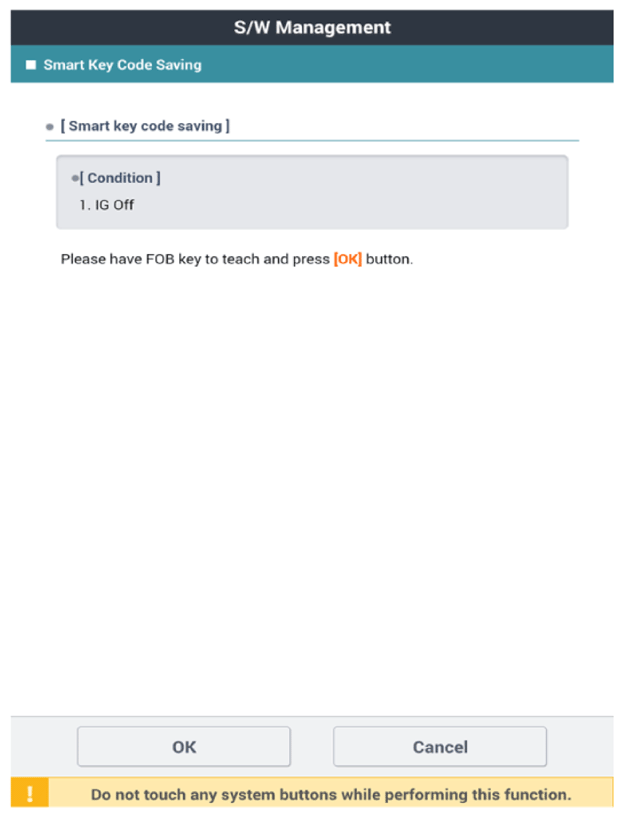

  4. Follow the instructions on the screen.
G16820130Courtesy of HYUNDAI MOTOR AMERICA
