SPTAC (Service Point Target Auto Calibration)

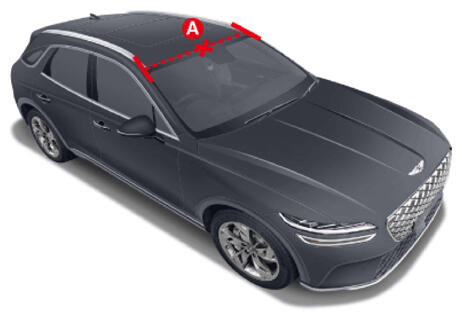

  1. Mark the center point (A) after measuring the distance on top of wind glass.
    G16818891Courtesy of HYUNDAI MOTOR AMERICA

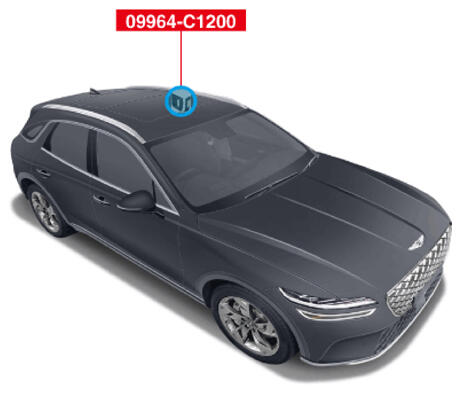

  2. Install the SCC setting beam (09964 - C1200) on the roof center above the vehicle's front windshield (same for both short and long distance calibrations).
    G16818892Courtesy of HYUNDAI MOTOR AMERICA

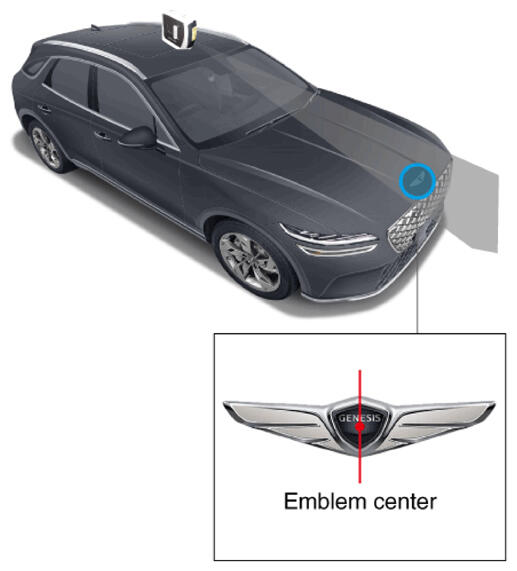

  3. Make the laser illuminate starting from the roof center line and passing through the center of the emblem.
    G16818893Courtesy of HYUNDAI MOTOR AMERICA

    Information

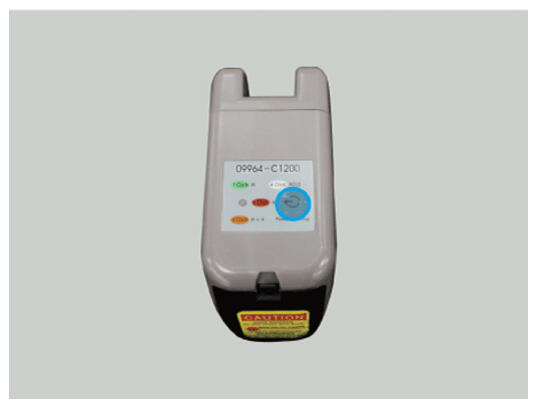

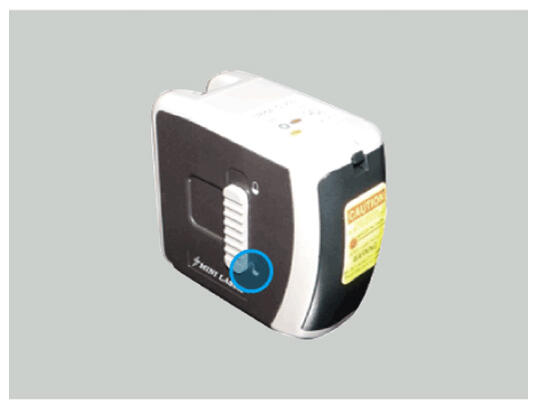

    The SCC setting beam (09964 - C1200) must be set to 'ON' and the holding (locking) function is not used.

    G16818894Courtesy of HYUNDAI MOTOR AMERICA
    G16818895Courtesy of HYUNDAI MOTOR AMERICA

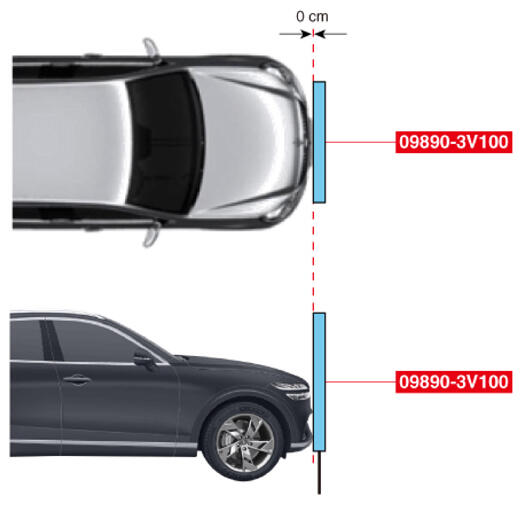

  4. Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 0 cm (0 in) from the bumper. [Max. tolerance: 10 cm (4 in)]
    G16818896Courtesy of HYUNDAI MOTOR AMERICA
  5. Set the front view camera calibration target (09890 - 3V100) height to 90 ± 1 cm (36 ± 0.4 in) from the ground and align the center of calibration target with center line (A) of laser beam.

    It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Max. tolerance: 3 cm (1 in)]

    G16818897Courtesy of HYUNDAI MOTOR AMERICA
    G16818898Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

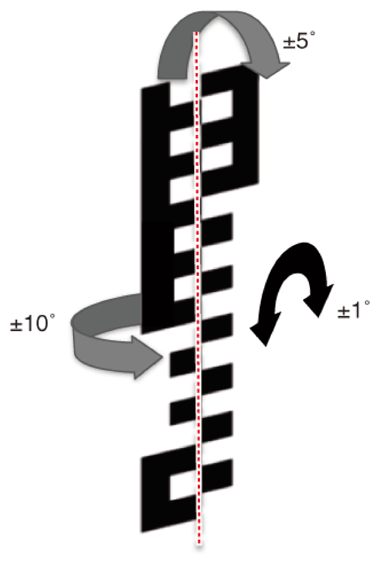

    • Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1°).

    The left and right tilt tolerance (±1°) is very important and is sensitively affected by the flatness of the floor.
    G16818899Courtesy of HYUNDAI MOTOR AMERICA
    G16818900Courtesy of HYUNDAI MOTOR AMERICA

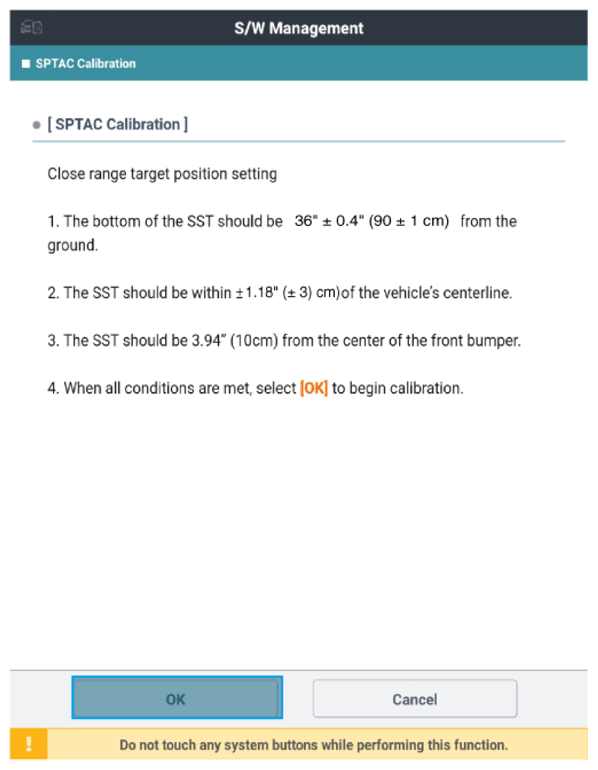

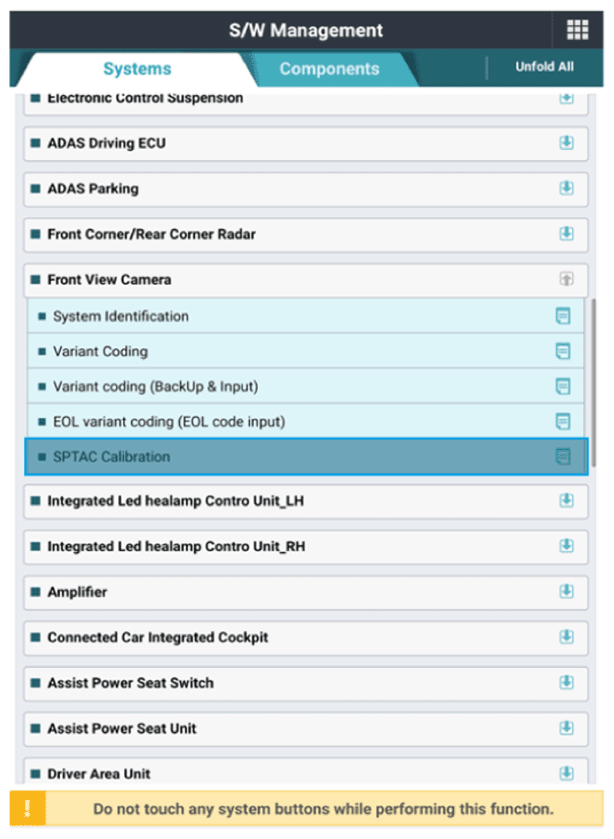

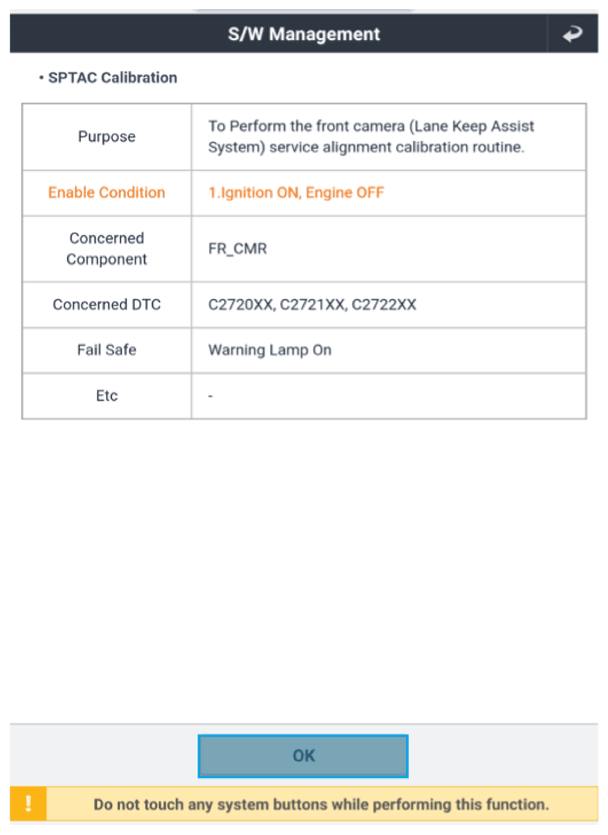

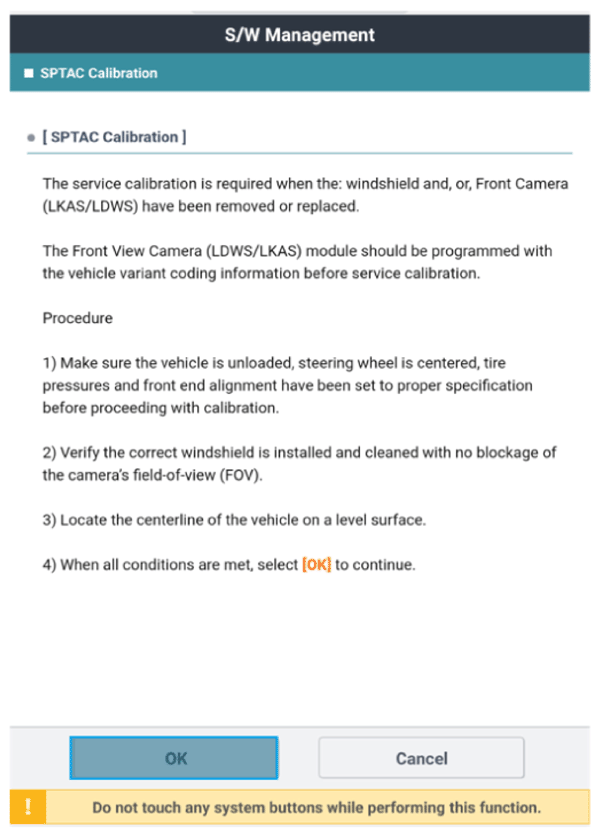

  6. Perform the "SPTAC (Service Point Target Auto Calibration)" using the diagnostic tool.
    G16818901Courtesy of HYUNDAI MOTOR AMERICA
    G16818902Courtesy of HYUNDAI MOTOR AMERICA
    G16818903Courtesy of HYUNDAI MOTOR AMERICA
    G16818904Courtesy of HYUNDAI MOTOR AMERICA

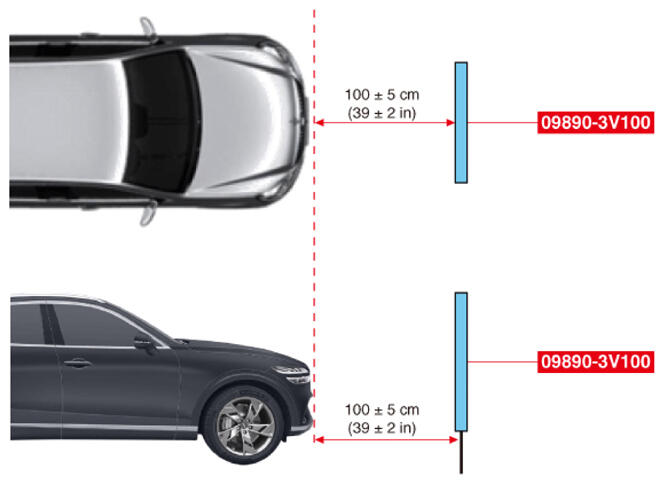

  7. Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 100 ± 5 cm [39 ± 2 in] from the bumper.
    G16818905Courtesy of HYUNDAI MOTOR AMERICA

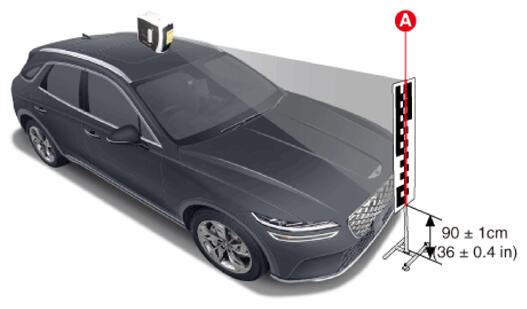

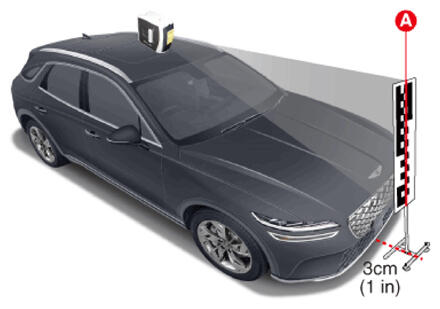

  8. Set the front view camera calibration target (09890 - 3V100) height to 90 ± 1 cm (36 ± 0.4 in) from the ground and align the center of calibration target with center line (A) of laser beam.

    It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Max. tolerance: 3 cm (1 in)]

    G16818906Courtesy of HYUNDAI MOTOR AMERICA
    G16818907Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1°).

    The left and right tilt tolerance (±1°) is very important and is sensitively affected by the flatness of the floor.
    G16818908Courtesy of HYUNDAI MOTOR AMERICA
    G16108974Courtesy of HYUNDAI MOTOR AMERICA
  9. Use the diagnostic device and perform the front camera adjustment. (Long distance adjustment)
    G16818909Courtesy of HYUNDAI MOTOR AMERICA
  10. Delete the DTC and check if the DTC and warning light still come on.
