Front Camera: Removal
NOTE:
- Read the specification information of the existing front camera before replacing it with a new one.
- Disconnect the battery negative (-) terminal.
- Turn off the ignition switch and disconnect the battery (-) terminal.

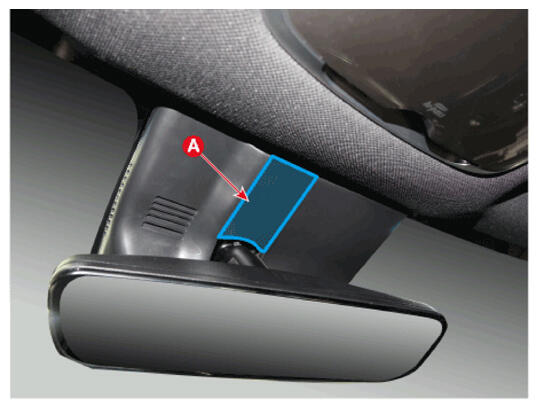

- Remove the multi sensor blanking cover (A).

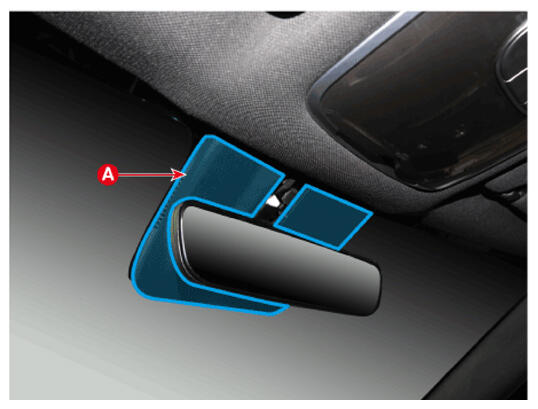

- Remove the multi-sensor cover (A) by pushing it in the direction of the arrow.

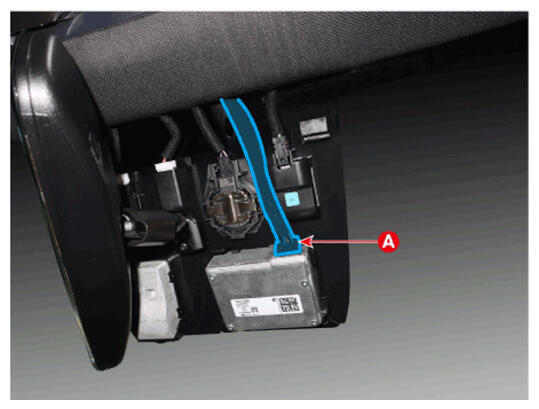

- Disconnect the front camera connector (A).

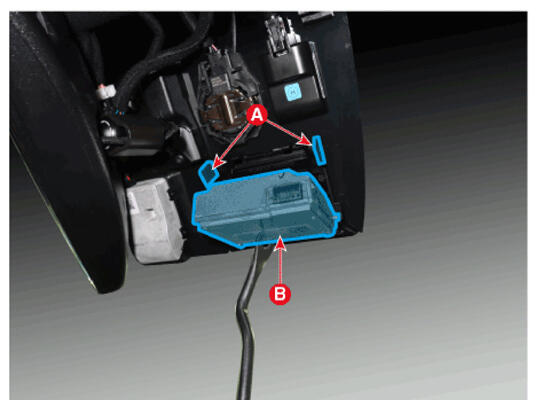

- Remove the front camera (B) by pulling both hooks (A) in the direction of the arrow.
NOTE:
- When separating the hooks (A), be careful not to damage it.
