Front Radar: Installation
NOTE:
- Check for vehicle alignment and tire pressure for accurate camera calibration.
- Make sure the vehicle does not sag. (Check the suspension problem)
- Put the vehicle on the level ground.
- Check that the front surface of the front radar is clean.
Information

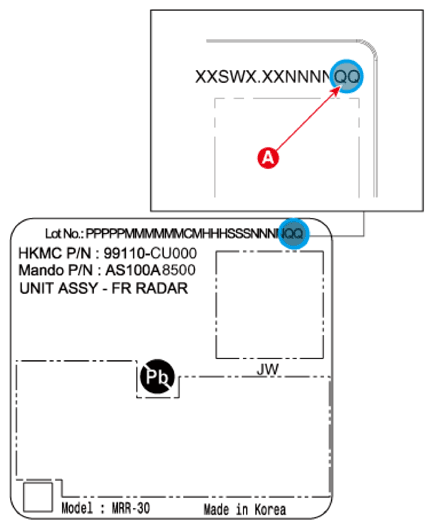

- Before installing the front radar, check the last 2 digits of the Lot, No (A). The label is on the back of the front radar.
- The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.

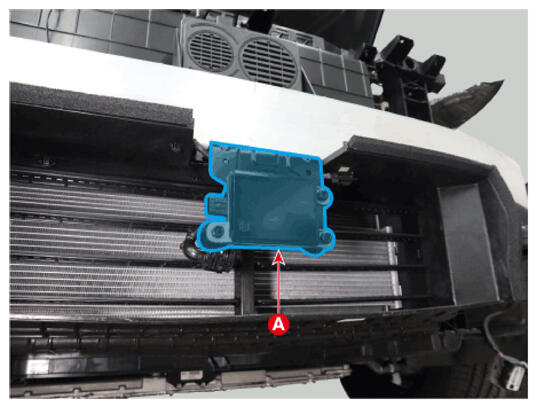

- Install the front radar.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)

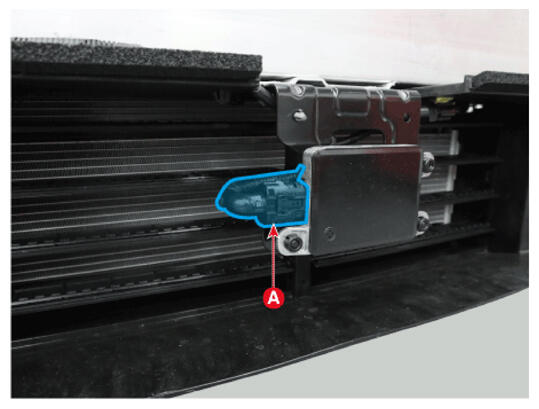

- Connect the front radar connector (A).

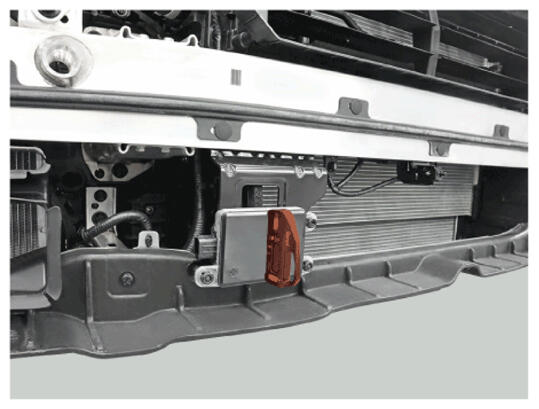

- Check and align the front radar mounting angle.

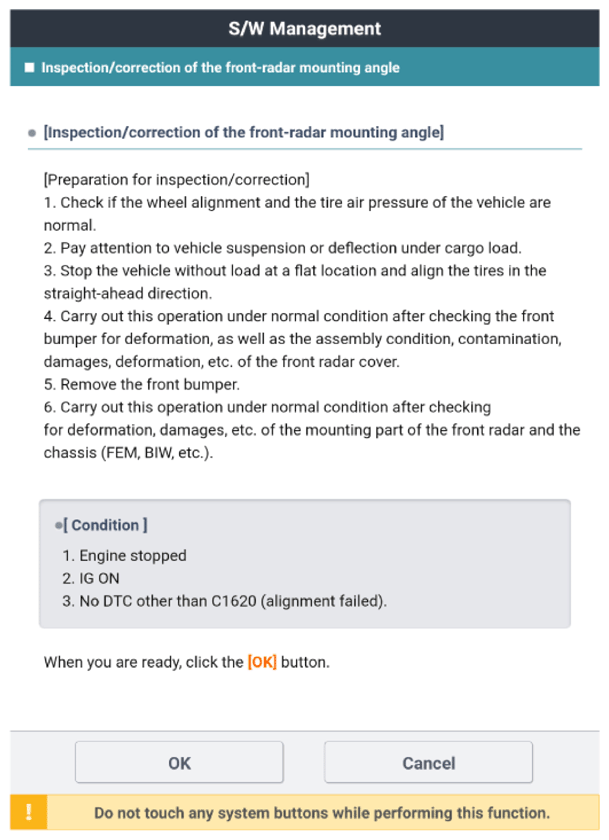

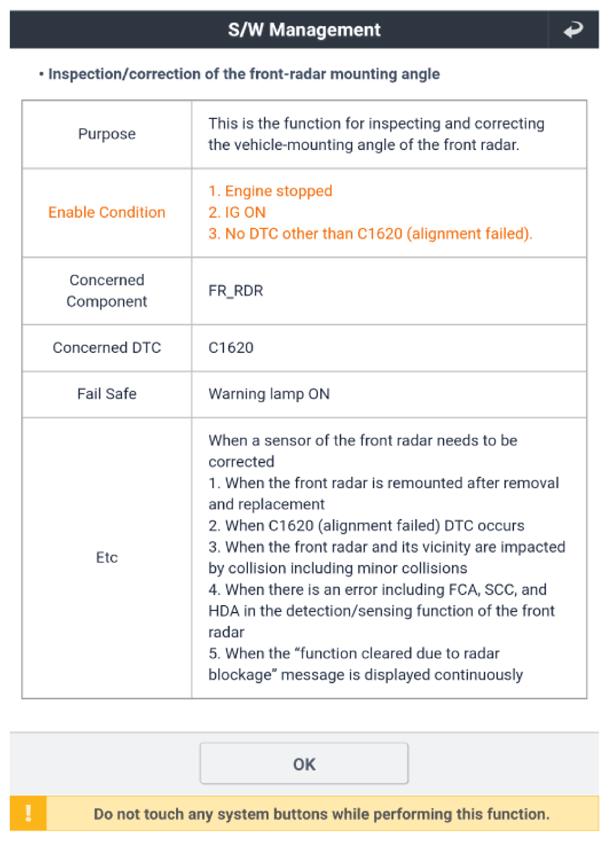

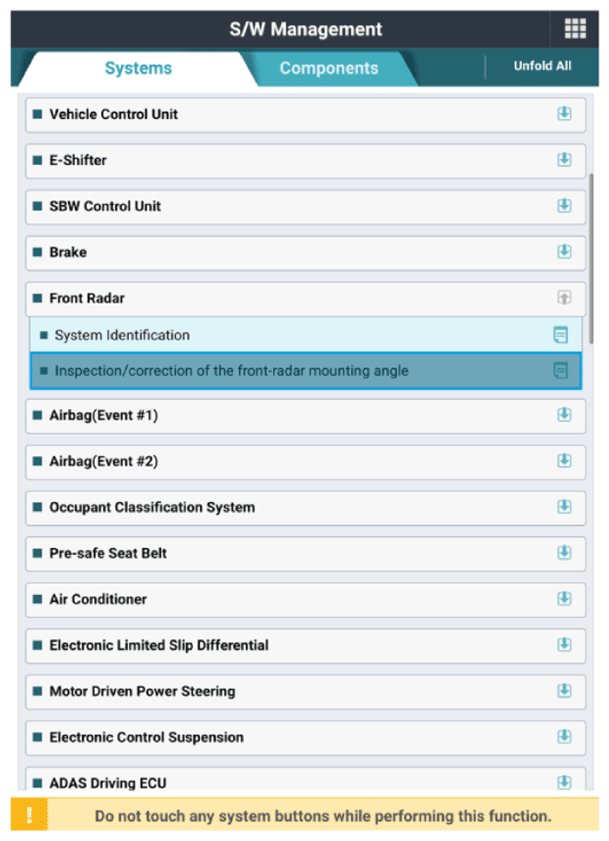

- Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.

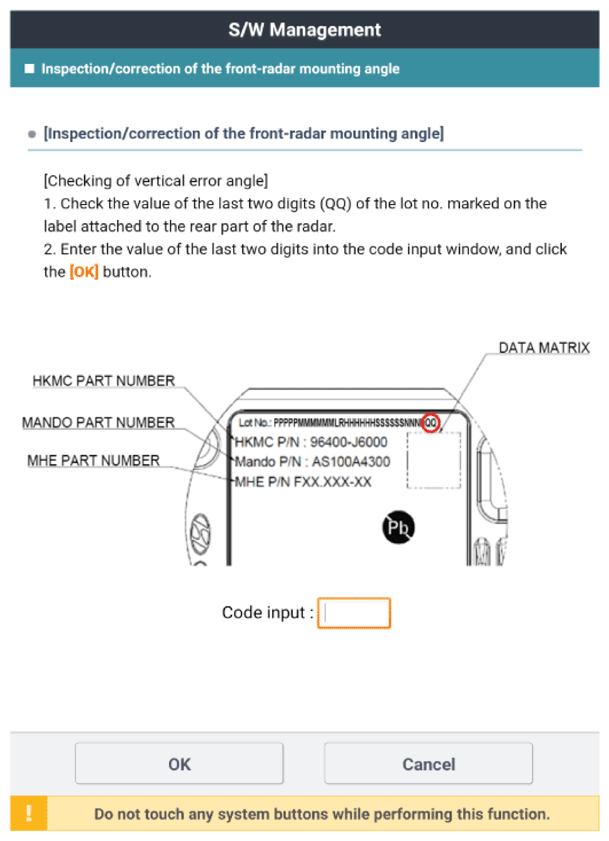

- Input 2 digits of value in the code input box, then press "OK"

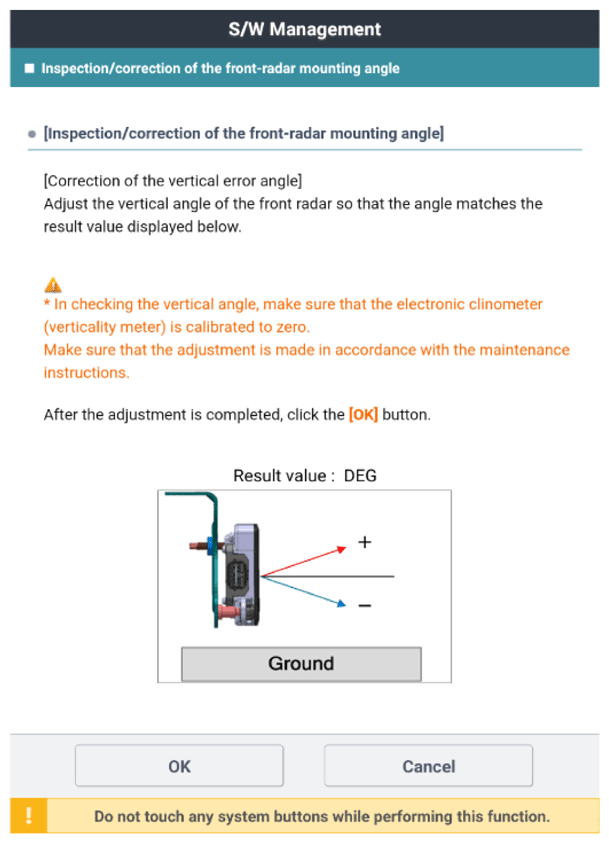

- Check the vertical angle which is compensated error on diagnostic tool.
Information
- The result value is final goal vertical angle which is compensated inner error of criteria vertical installation angle -1°.
- Check the front radar vertical angle by using the vertical protractor (tiltmeter).
NOTE:- Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)

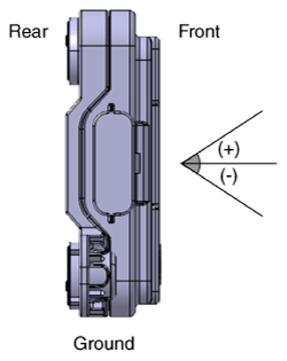

- Be careful with +/- readings when finding true vertical using vertical protractor.

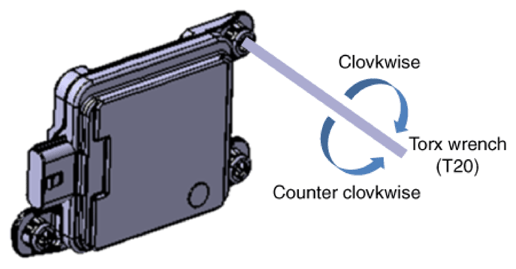

Number of adjustment screw rotation Correction angle Clockwise Counter clockwise 0.5 + 0.5° - 0.5° 1 + 1.0° - 1.0° 1.5 + 1.5° - 1.5° 2 + 2.0° - 2.0° 2.5 + 2.5° - 2.5° 3 + 3.0° - 3.0° 3.5 + 3.5° - 3.5° 4 + 4.0° - 4.0° 4.5 + 4.5° - 4.5° 5 + 5.0° - 5.0° NOTE:- Make sure that there is no foreign or reflective objects on the surface of the radar.
- Make sure that there is no foreign or reflective objects on the radiator grille.
- Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.
- Install the front bumper assembly.
(Refer to Body (Interior/Exterior/Electrical) - "FRONT BUMPER ASSEMBLY ")
- Perform the front radar inspection/correction procedure by using the SST.
(Refer to Front Radar - "ADJUSTMENT ")
