Front Radar: Removal
NOTE:
- Read the specification information of the existing front radar before replacing it with a new one.
- Disconnect the battery negative (-) terminal.
- Turn off the ignition switch and disconnect the battery (-) terminal.
- Remove the front bumper assembly.
(Refer to Body (Interior/Exterior/Electrical) - "FRONT BUMPER ASSEMBLY ")

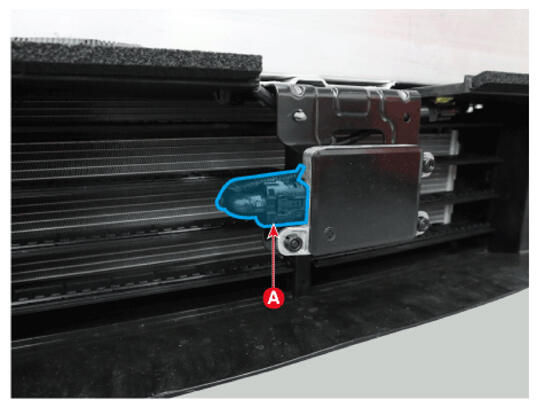

- Disconnect the front radar connector (A).

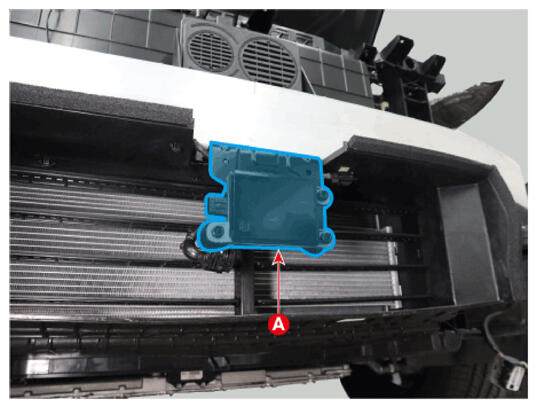

- Remove the front radar (A) after removing the mounting bolts.
NOTE:
- When removing the front radar, be careful not to damage the bracket.
- If the bracket is deformed or damaged, the installed radar will not operate normally.
Information
- If the radar/bracket/connector, etc. is damaged, replace the front radar assembly.
