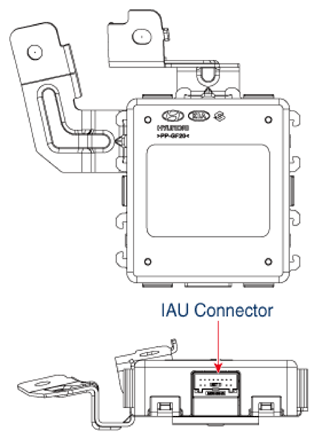

Identity Authentication Unit (IAU)

Courtesy of HYUNDAI MOTOR AMERICA

IAU Connector	Pin NO	Function
Courtesy of HYUNDAI MOTOR AMERICA	1	IGN 1
	2	IGN 2
	3	-
	4	Power ground
	5	Battery (+)
	6	ACC
	7	Local CAN High
	8	Local CAN Low
	9	B-CAN High
	10	B-CAN Low
	11	BLE_LIN
	12	ECU Ground
