Components And Components Location: Components

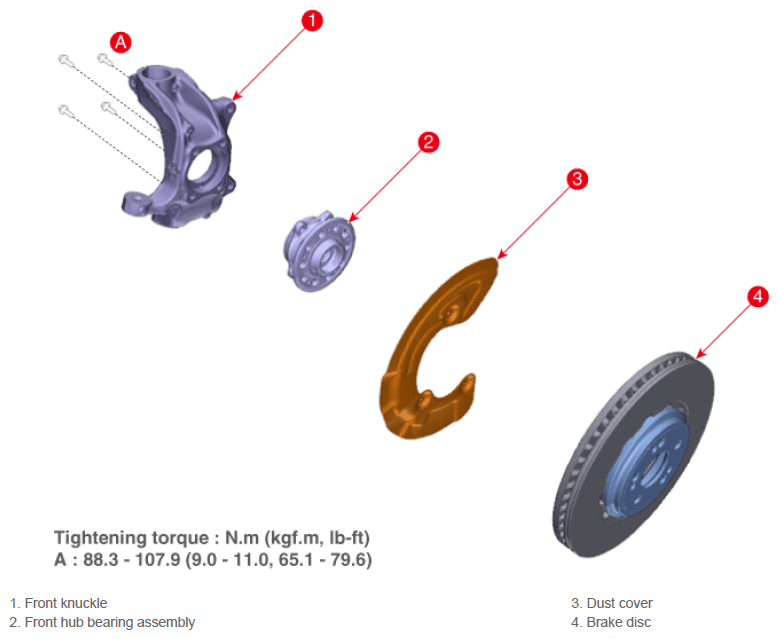

Fig 1: Front Hub/Knuckle/Tone Wheel Components Location With Torque Specifications
G16817519Courtesy of HYUNDAI MOTOR AMERICA
