Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

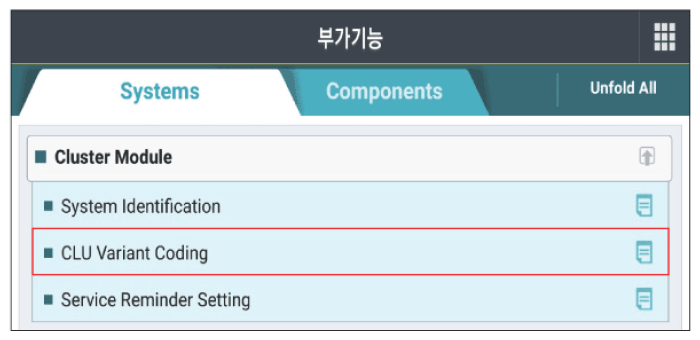

G16822643Courtesy of HYUNDAI MOTOR AMERICA

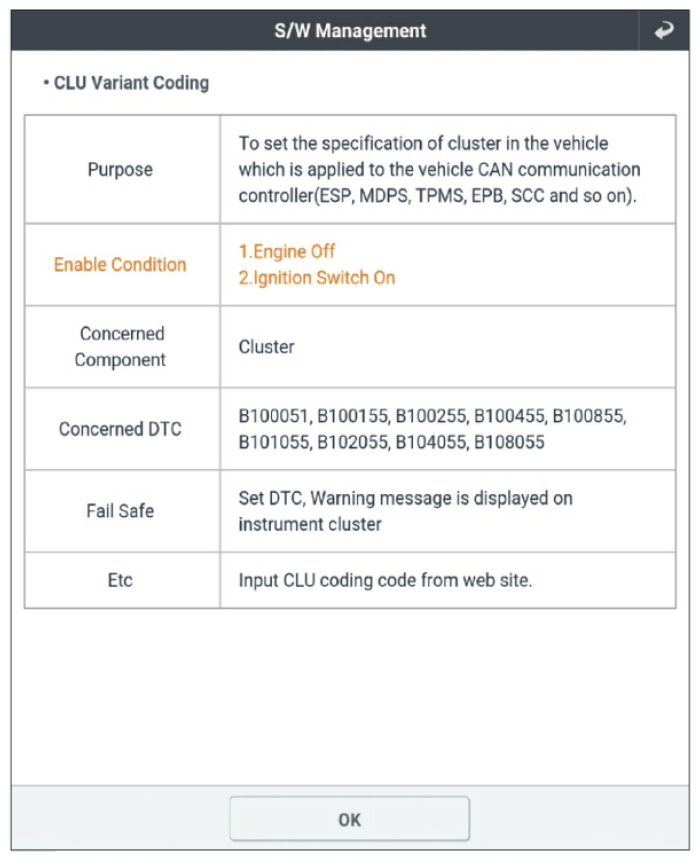

G16822644Courtesy of HYUNDAI MOTOR AMERICA
G16822645Courtesy of HYUNDAI MOTOR AMERICA

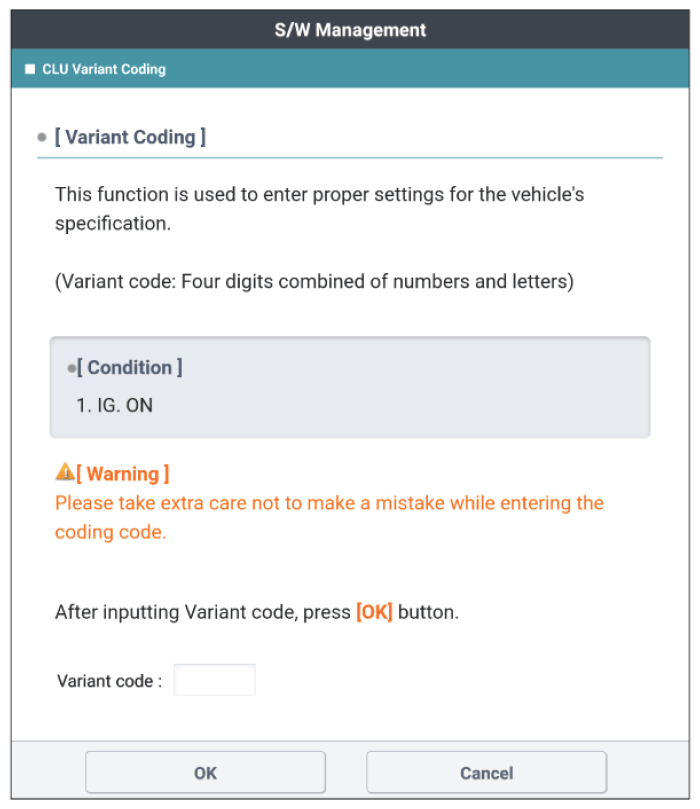

G16822646Courtesy of HYUNDAI MOTOR AMERICA

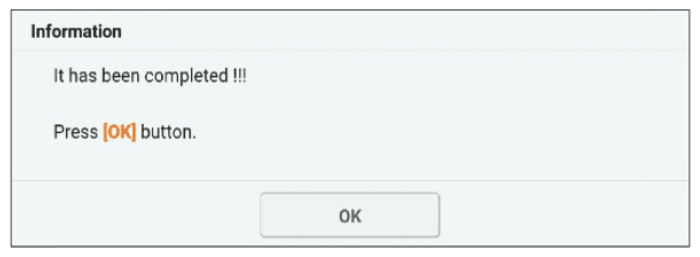

G16822647Courtesy of HYUNDAI MOTOR AMERICA
