Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

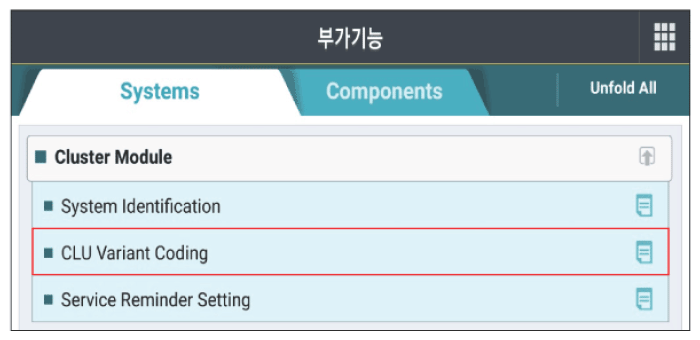

G16822679Courtesy of HYUNDAI MOTOR AMERICA

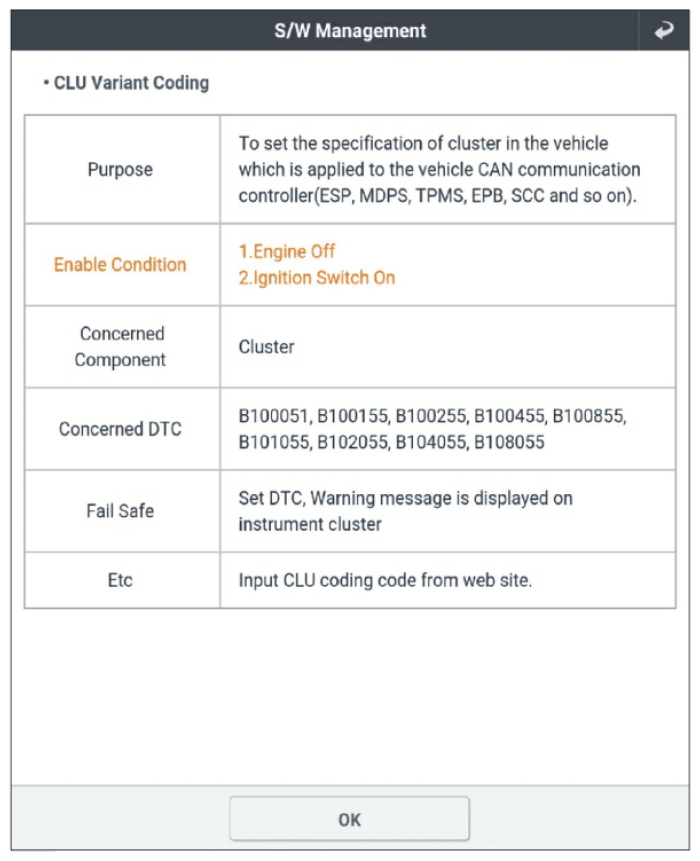

G16822680Courtesy of HYUNDAI MOTOR AMERICA
G16822681Courtesy of HYUNDAI MOTOR AMERICA

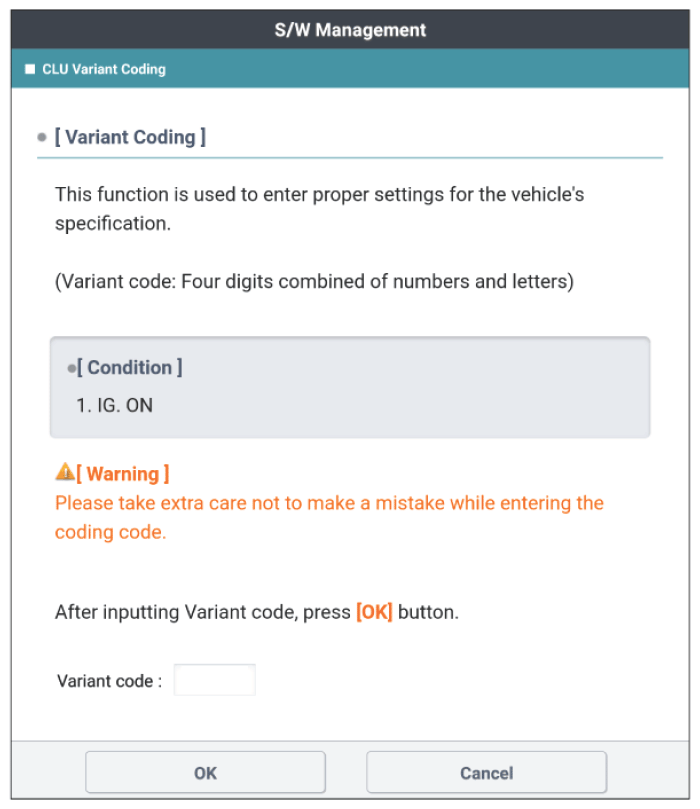

G16822682Courtesy of HYUNDAI MOTOR AMERICA

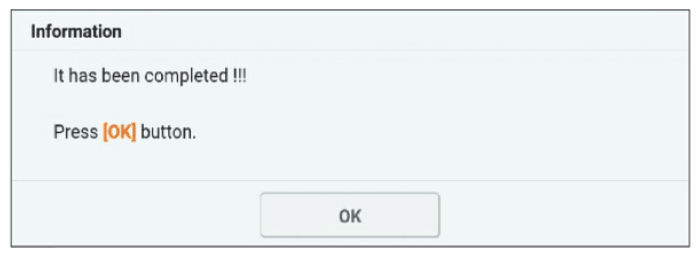

G16822683Courtesy of HYUNDAI MOTOR AMERICA
