Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

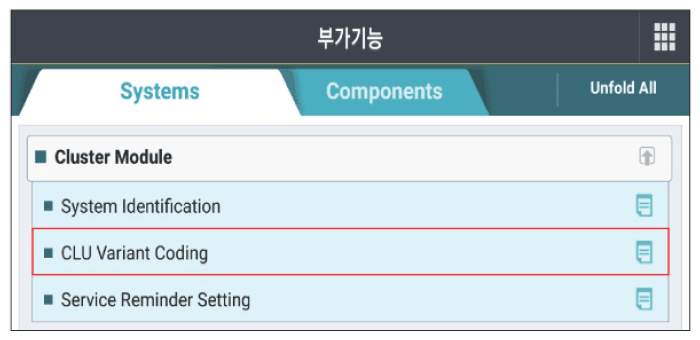

G16822715Courtesy of HYUNDAI MOTOR AMERICA

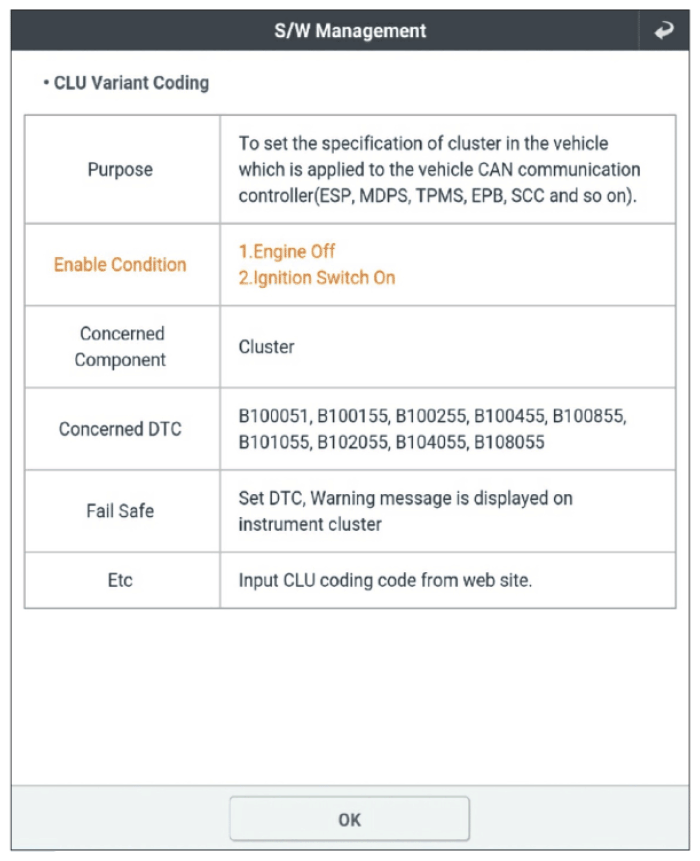

G16822716Courtesy of HYUNDAI MOTOR AMERICA
G16822717Courtesy of HYUNDAI MOTOR AMERICA

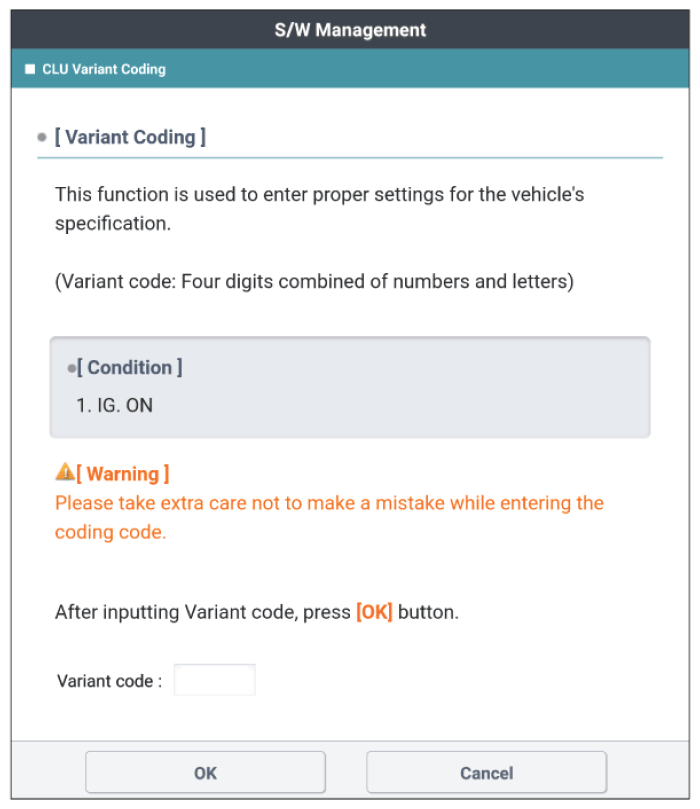

G16822718Courtesy of HYUNDAI MOTOR AMERICA

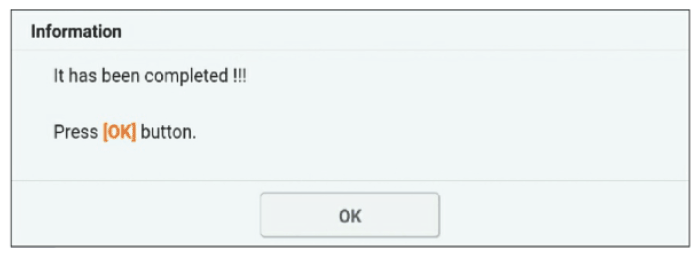

G16822719Courtesy of HYUNDAI MOTOR AMERICA
