Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

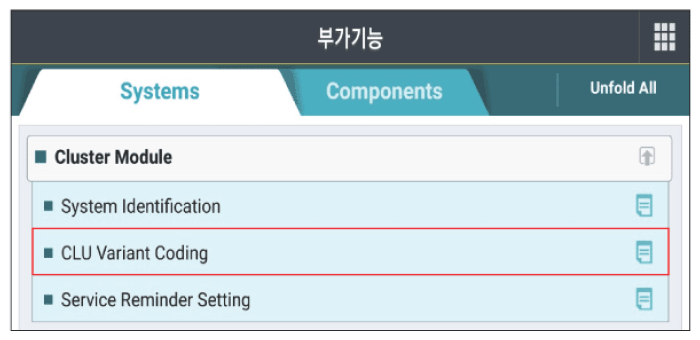

G16822739Courtesy of HYUNDAI MOTOR AMERICA

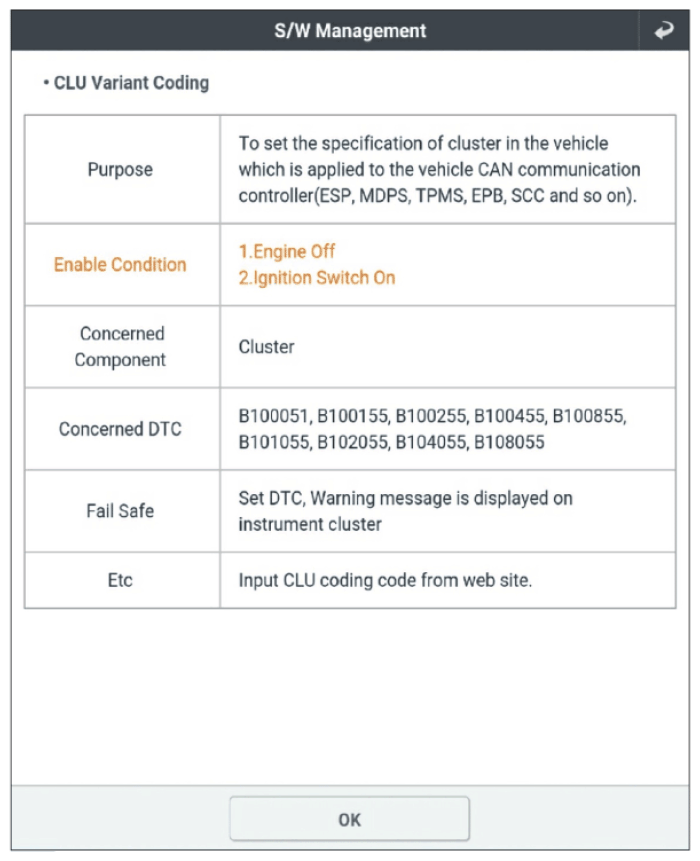

G16822740Courtesy of HYUNDAI MOTOR AMERICA
G16822741Courtesy of HYUNDAI MOTOR AMERICA

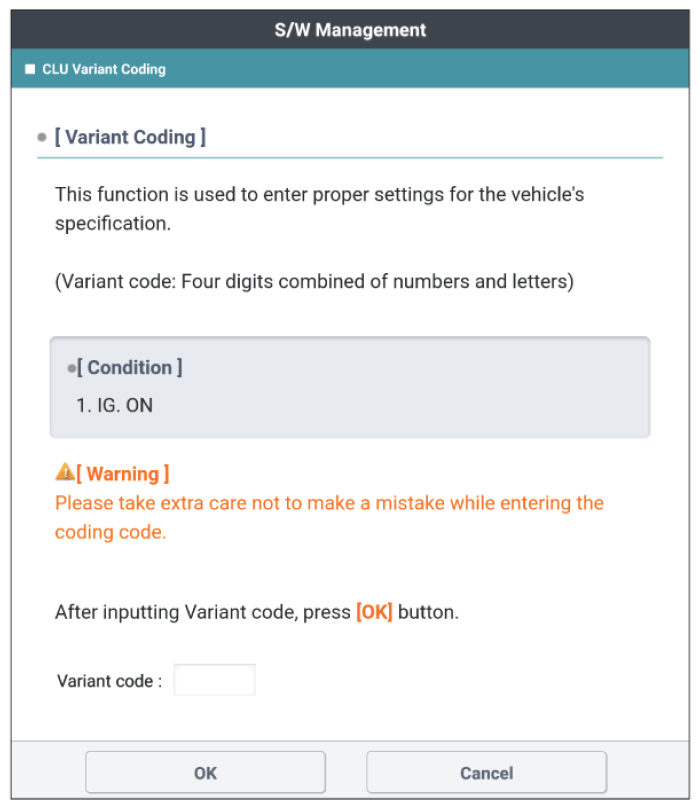

G16822742Courtesy of HYUNDAI MOTOR AMERICA

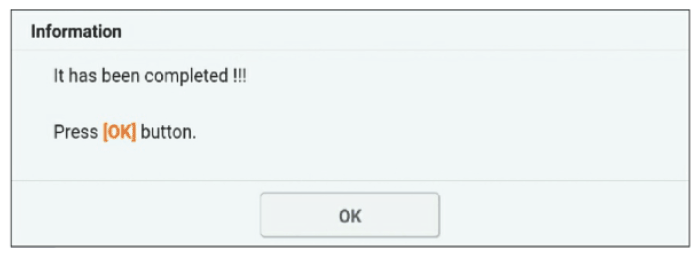

G16822743Courtesy of HYUNDAI MOTOR AMERICA
