Components And Components Location: Components

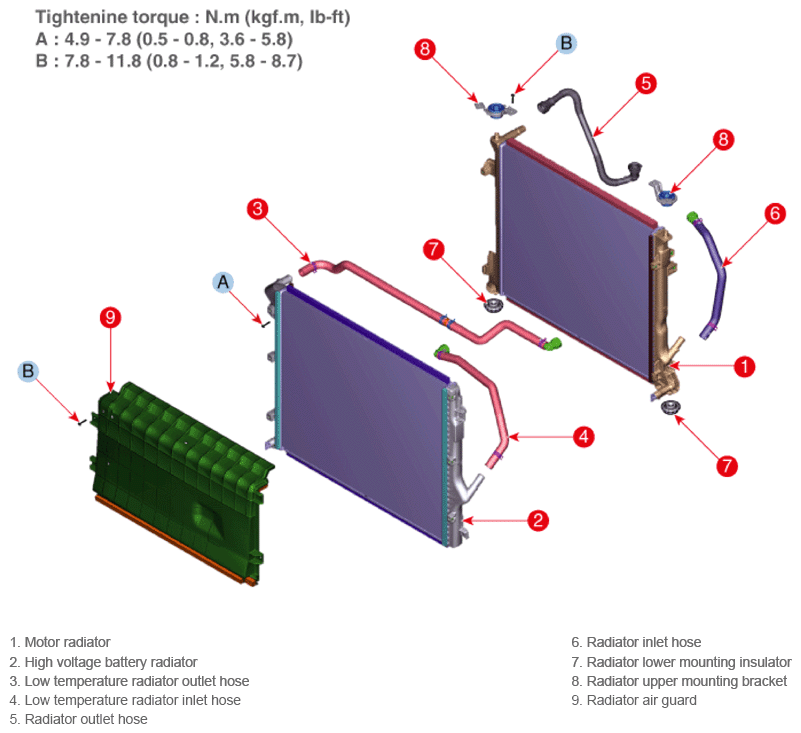

Fig 1: Radiator Components Location With Torque Specifications
G16820325Courtesy of HYUNDAI MOTOR AMERICA
