Inverter Assembly: Installation

Install in the reverse order of removal.
NOTE:
- Be careful not to bend the inverter assembly gasket is a metal gasket.
- Use a gasket with a new one.

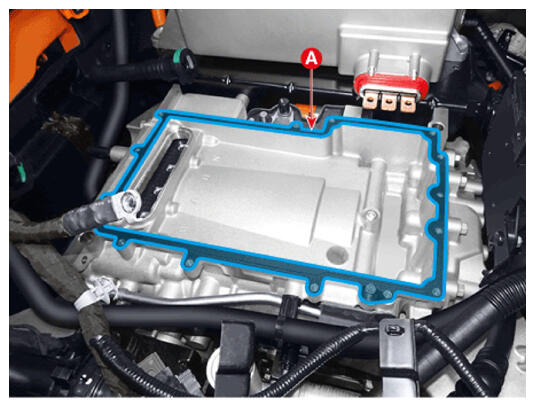

[Front Inverter Assembly]

Courtesy of HYUNDAI MOTOR AMERICA

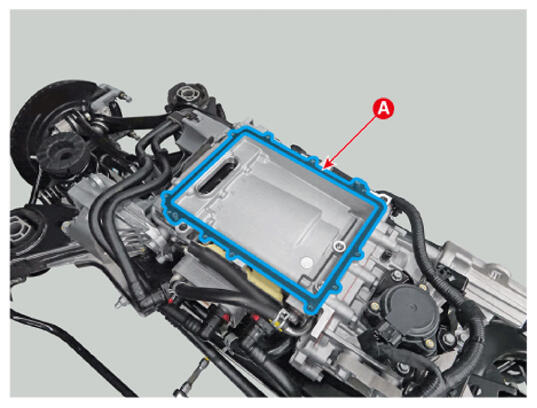

[Rear Inverter Assembly]

Courtesy of HYUNDAI MOTOR AMERICA
Perform the air tightness inspection after installing the inverter and high voltage junction block.
(Refer to Motor and Reduction Gear System - "AIR TIGHTNESS INSPECTION ")
