DTC U0293-00: Lost Communication With Hybrid/EV Powertrain Control Module
›
Troubleshooting
›

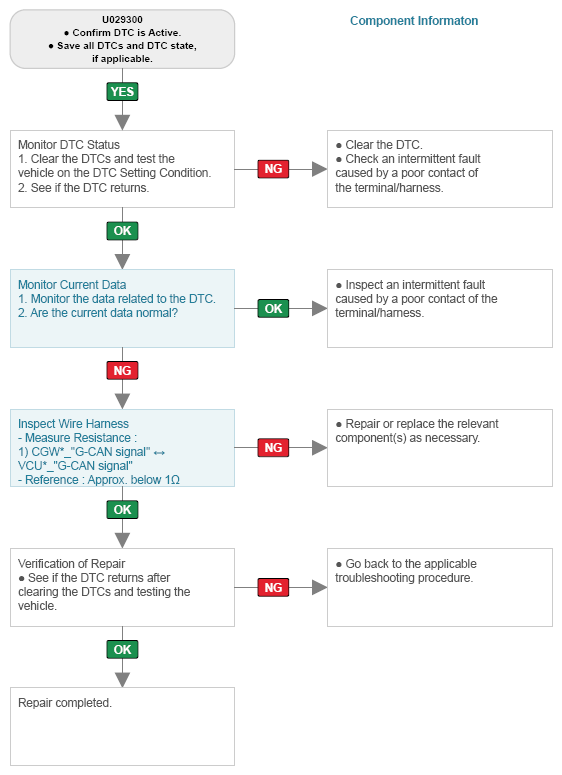

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
