Side Airbag (Sab) Module: Removal
- Disconnect The Battery Negative (-) Terminal.
- Remove The Front Seat Back Cover Assembly.
(Refer To Body (Interior/Exterior/Electrical) - "Front Seat Back Cover Assembly ")
- Remove The Side Airbag Wiring (A) After Removing The Side Airbag Wiring Clips.

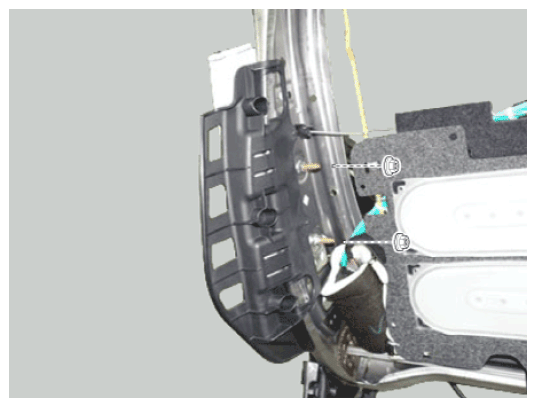

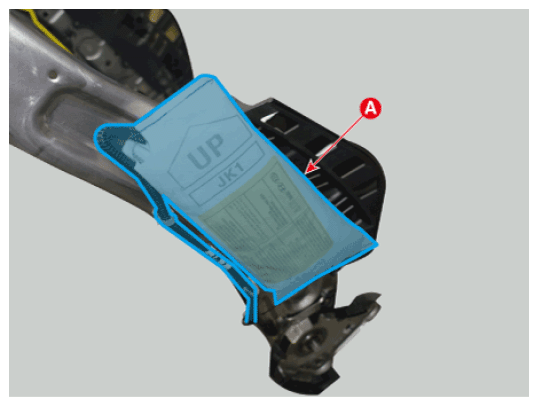

- Remove The Side Airbag Module (A) After Removing The Nuts.
Tightening Torque:
5.9 - 7.8 N.M (0.6 - 0.8 Kgf.M, 4.3 - 5.8 Lb-Ft)
