Neutralization Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

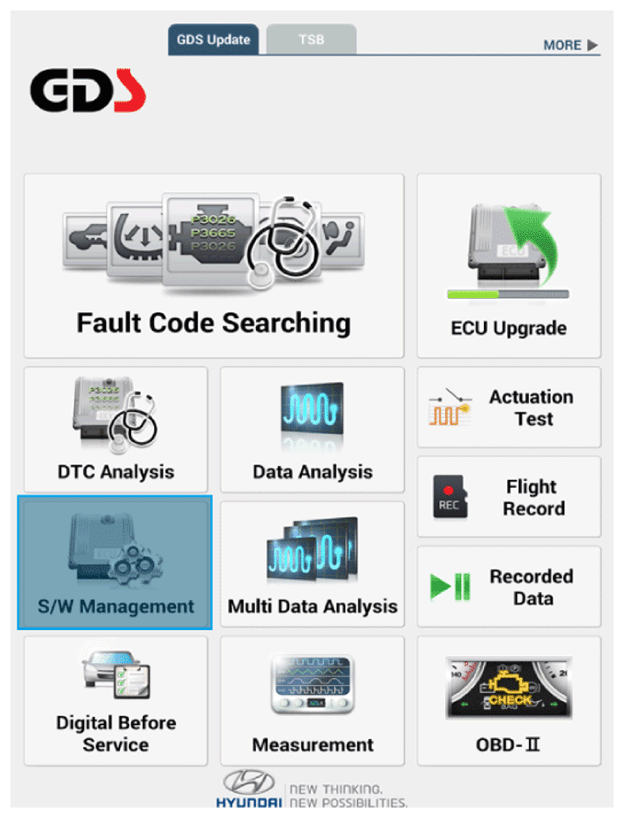

  2. Select the 'S/W Management' and 'Car model'.
    G16820124Courtesy of HYUNDAI MOTOR AMERICA

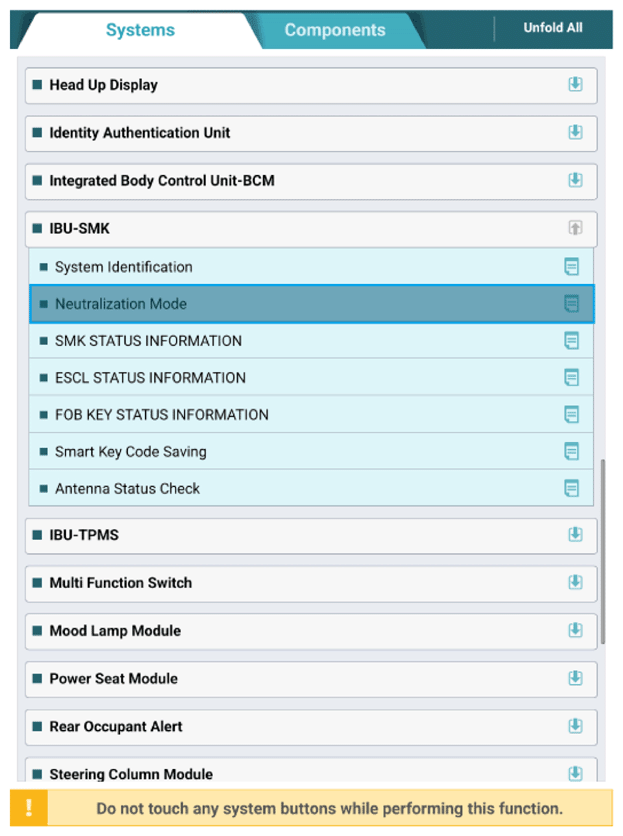

  3. Select the 'IBU-SMK' and 'Neutralization Mode'.
G16820125Courtesy of HYUNDAI MOTOR AMERICA

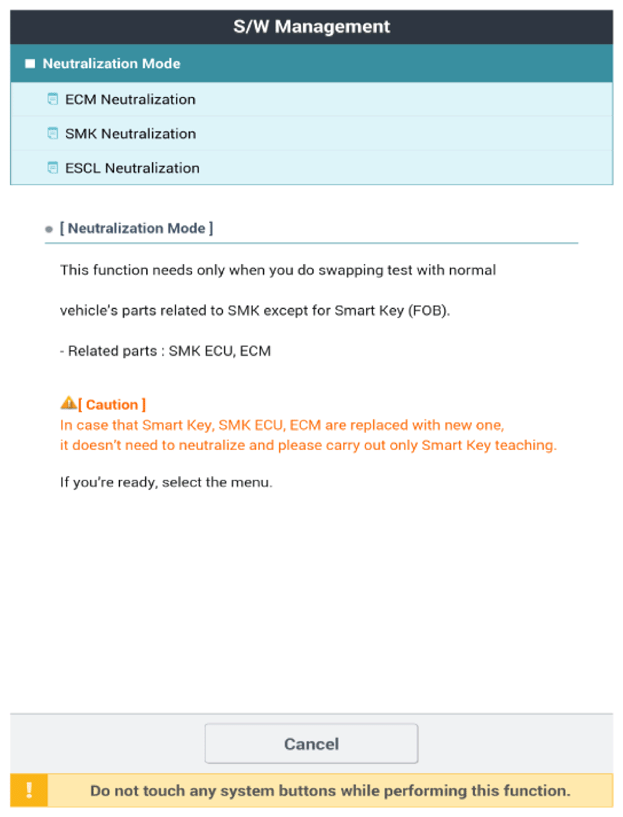

G16820126Courtesy of HYUNDAI MOTOR AMERICA
