Smart Key Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

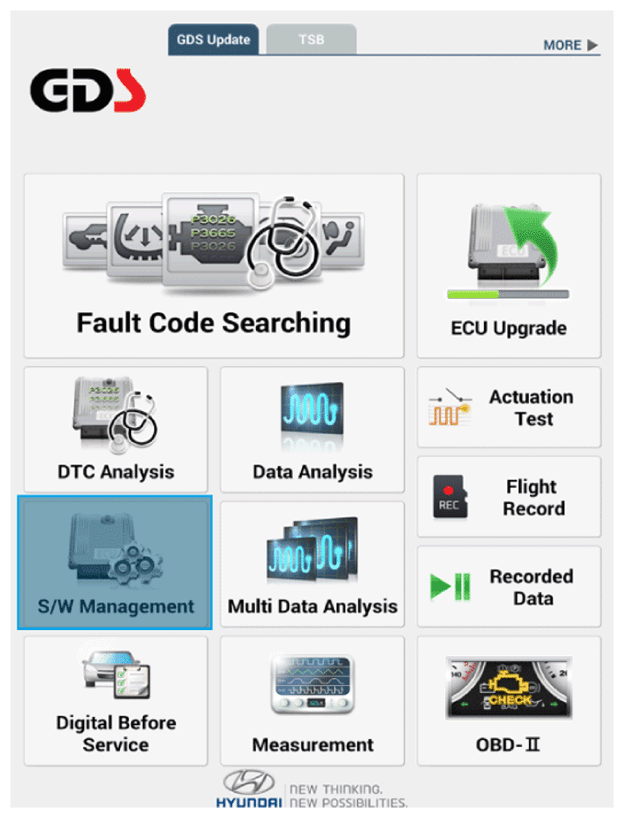

    G16820121Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'IBU-SMK' and 'SMK STATUS INFORMATION'.

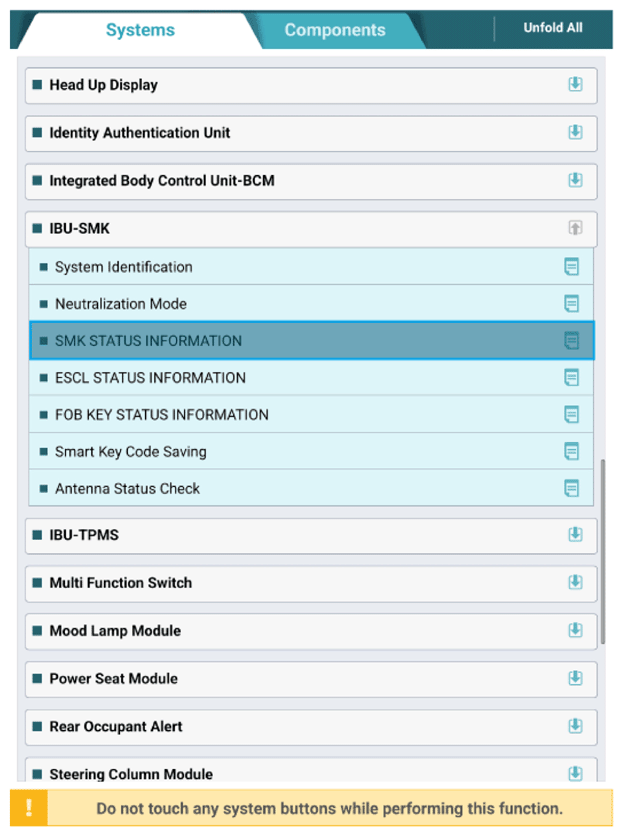

G16820122Courtesy of HYUNDAI MOTOR AMERICA

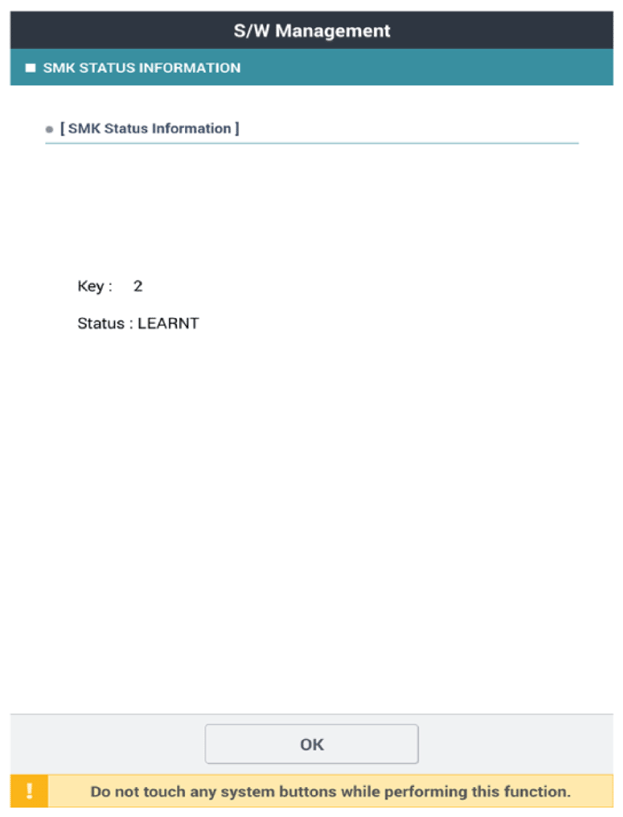

G16820123Courtesy of HYUNDAI MOTOR AMERICA
