FOB Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

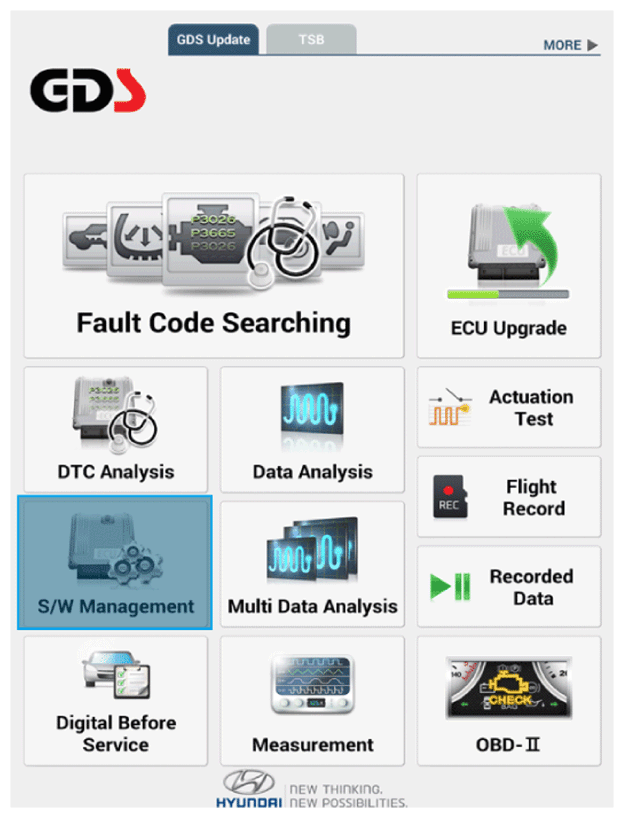

    G16820118Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'IBU-SMK' and 'FOB KEY STATUS INFORMATION'.

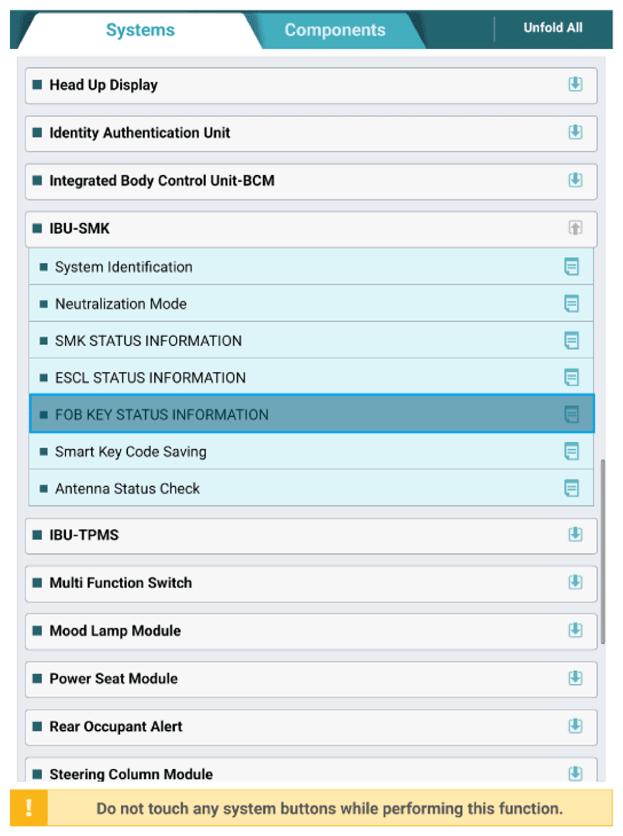

G16820119Courtesy of HYUNDAI MOTOR AMERICA

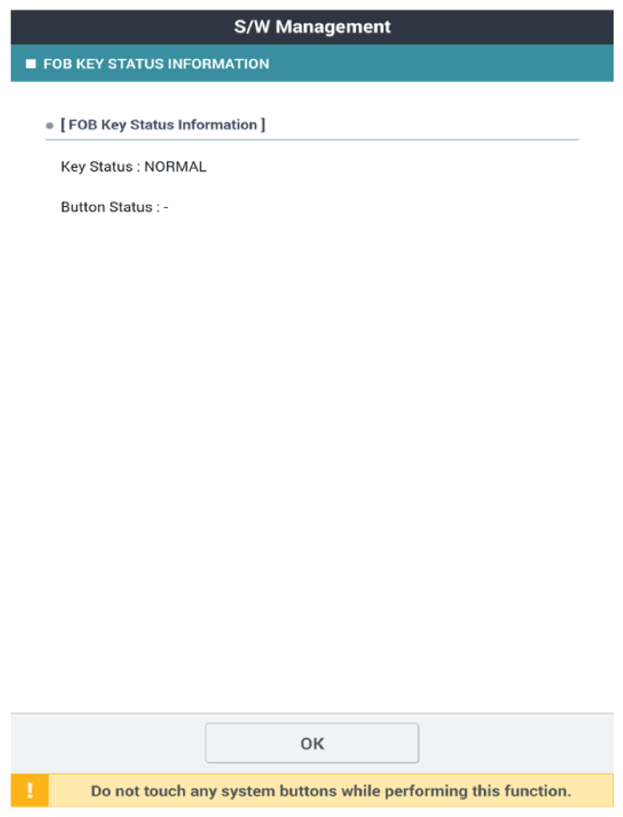

G16820120Courtesy of HYUNDAI MOTOR AMERICA
