[Occupant Classification System Sensor]

Disconnect the battery negative (-) terminal.
Remove the front seat cushion cover [RH].
(Refer to Body (Interior/Exterior/Electrical) - "FRONT SEAT CUSHION COVER ")

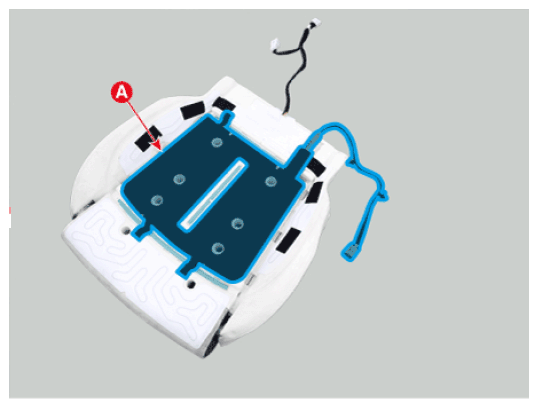

Remove the OCS sensor (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
