Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

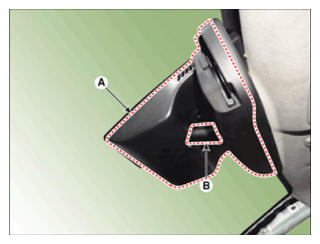

  2. Remove the mirror wiring cover (B) and rain sensor cover (A).
    G15590170Courtesy of HYUNDAI MOTOR AMERICA

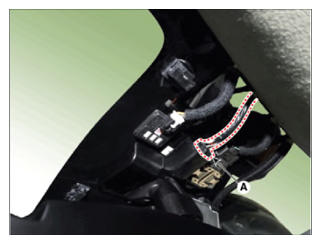

  3. Remove the mirror connector (A).
    G15590171Courtesy of HYUNDAI MOTOR AMERICA

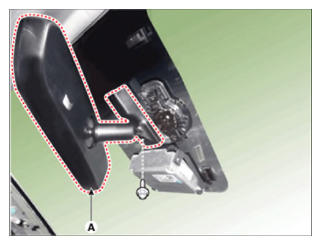

  4. Remove the mirror (A) by pulling up the mirror assembly after loosening the mounting screw.
    NOTE: Make sure not to damage the mounting bracket when removing the mirror.
    G15590172Courtesy of HYUNDAI MOTOR AMERICA
