Repair Procedures: Removal

200W

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the glove box housing.

   (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING ")

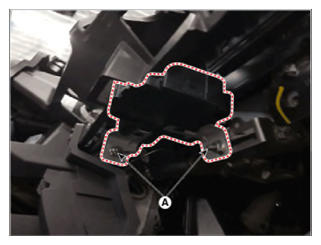

3. Remove the DC/DC converter after loosening the mounting nuts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Disconnect the DC/DC converter connector.

400W

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

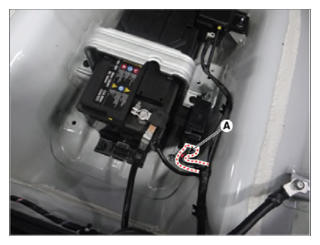

2. Disconnect the DC/DC converter connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

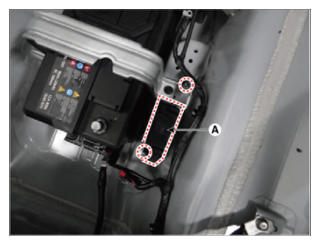

3. Remove the DC/DC converter (A) after loosening the mounting nuts.

Courtesy of HYUNDAI MOTOR AMERICA
