Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

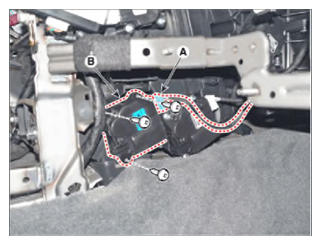

- Disconnect the console mode actuator connector (A) and loosen the mounting screw and then remove the console mode actuator (B).
- Install in the reverse order of removal.
