Driver's side
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

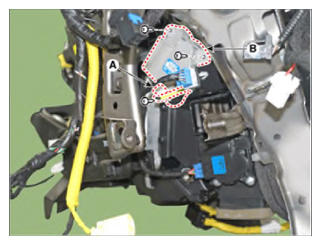

- Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

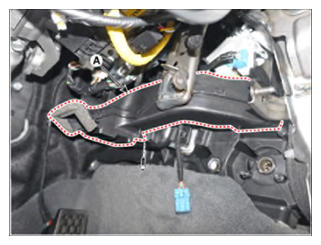

- Loosen the mounting screws, remove the driver's shower duct (A).

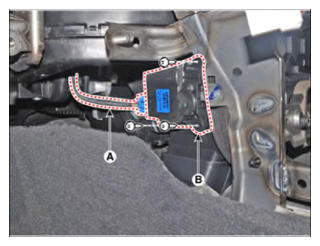

- Loosen the mounting screws, remove the driver's mode control actuator (A).
- Install in the reverse order of removal.
