Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Fix the brake pedal not to move and insert the switch until it contacts with the switch stopper bracket.
- After inserting, turn the brake switch 45° clockwise, and then assemble locking plate (A) by pushing.

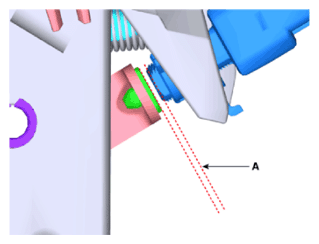

- Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A):
1.0-2.0 mm (0.04 - 0.08 in.)
NOTE:- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.

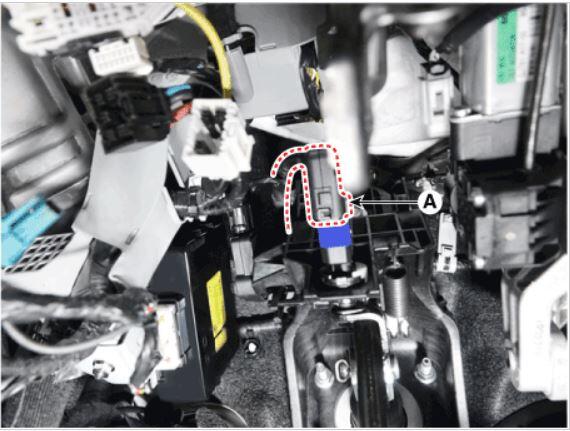

- Install the stop lamp switch connector (A).
- Install the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
