Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Disconnect the negative (-) battery terminal.

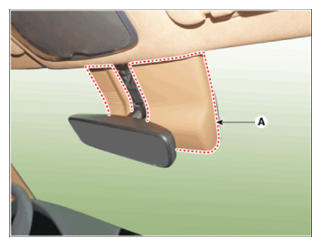

- Remove the inside rear view mirror cover (A).

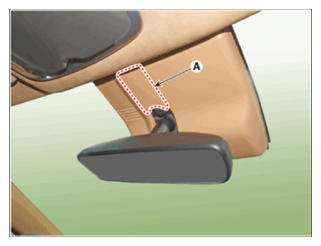

- Remove the rain sensor cover (A).

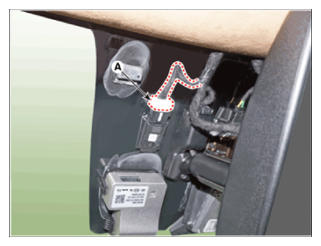

- Press the lock pin and disconnect the auto defogging sensor connector (A).

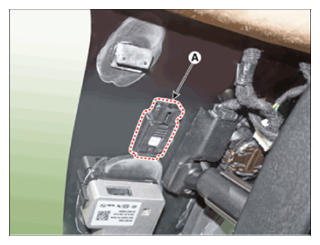

- Remove the auto defogging sensor (A).
- Install in the reverse order of removal.CAUTION:
- Carefully remove and refit the windshield glass.
