Repair Procedures: Disassembly
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the compressor.
(Refer to Air Conditioning System - "COMPRESSOR ")

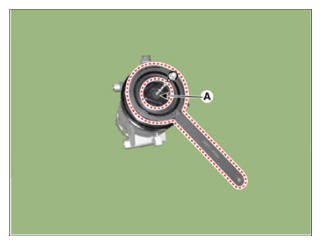

- Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09977-3R000).
Tightening torque:
10 - 15 N.m (1.03 - 1.53 kgf.m, 7.4 - 11.0 lb-ft)

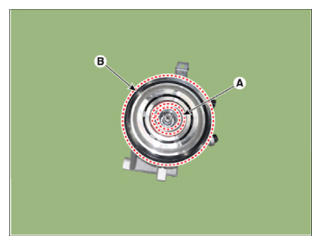

- Remove the pulley snap ring (A) and then remove the pulley (B).NOTE:
- Be careful not to damage the pulley and compressor during disassembly/reassembly.
- Once the snap ring is removed, replace it with a new one.
- Reassemble in the reverse order of disassembly.NOTE:
- Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
- Install a new snap ring, and make sure they are fully seated in the groove.
- Make sure that the pulley turns smoothly after reassembly.
