Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the compressor assembly mounting bolts in the following sequence.
[Smartstream G 2.5 FR T-GDI]

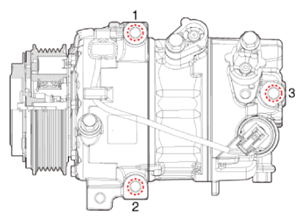

Fig 1: Compressor Assembly Mounting Bolts Tightening Sequence (Smartstream G 2.5 FR T-GDI)
Courtesy of HYUNDAI MOTOR AMERICA

[Smartstream G 3.5 FR T-GDI]

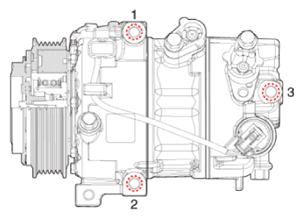

Fig 2: Compressor Assembly Mounting Bolts Tightening Sequence (Smartstream G 3.5 FR T-GDI)
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- If you install a new compressor, drain all the refrigerant oil from the removed compressor and measure its volume. Subtract the volume of drained oil from the original capacity. The result is the amount of the oil you should drain from the new compressor (through the suction fitting).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other types of refrigerant oil.
- Immediately after using the oil, replace the cap on the container and seal it to avoid moisture absorption.
