Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Recover the refrigerant with a recovery/recycling/charging station.
- Disconnect the negative (-) battery terminal.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Remove the Active Air Flap (AAF).
(Refer to Engine Mechanical System - "ACTIVE AIR FLAP (AAF) ")

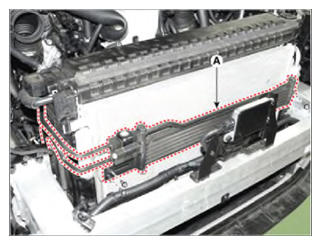

- Loosen the mounting bolts, remove the ATF cooler.[Smartstream G 3.5 FR T-GDI]
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

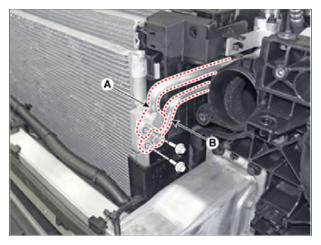

- Loosen the mounting bolts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.

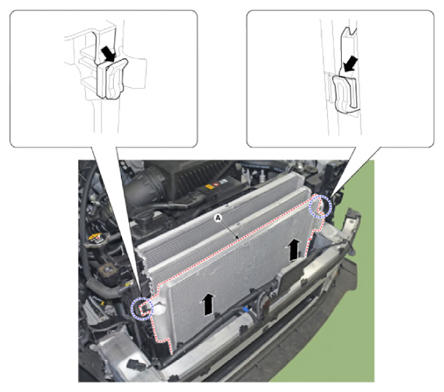

- Press the lock pin, remove the condenser assembly (A) from the radiator assembly.
- Install in the reverse order of removal.NOTE:
- If you're installing a new condenser, add refrigerant oil.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Charge the system, and test its performance.
