Programming Genesis NFC Card Key (22-BE-005G)
Publication date: 2022-08-01Reference number: 22-BE-005G
PROGRAMMING GENESIS NFC CARD KEY
TECHNICAL SERVICE BULLETIN
Reference Number(s): 22-BE-005G, Date of Issue:
August 01, 2022
| GENESIS: | 2023 GV60 (JW1) |
| GROUP: | BODY ELECTRICAL |
DESCRIPTION
This bulletin provides information for programming NFC card key to the vehicle.
Applicable Vehicles: 2023MY GV60 (JW1)
PARTS INFORMATION
PARTS INFORMATION
| Parts Name | Part Number | Qty. |
|---|---|---|

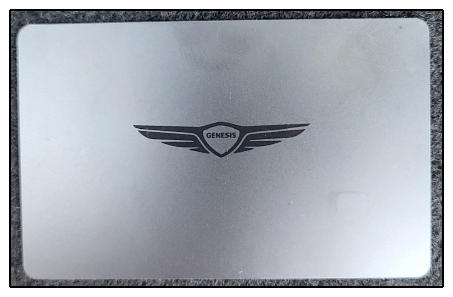

| NFC Card Key | CUH81AB000 | 1 |
NOTE:
Serial Number (8 digits) can be found on the bottom right side on the back of the NFC 2.0 card.
WARRANTY INFORMATION
Normal warranty applies.
SERVICE PROCEDURE
- Remove the key card from the plastic sleeve.

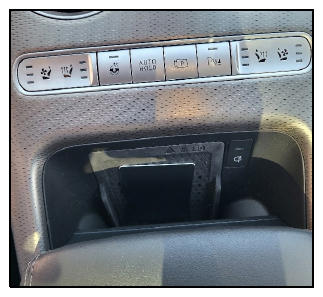

- Place the key card on the wireless charging pad.

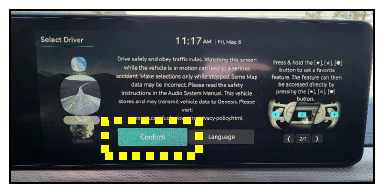

- With both
key FOBs inside the vehicle, turn IGN ON only to power ON display and press "Confirm".

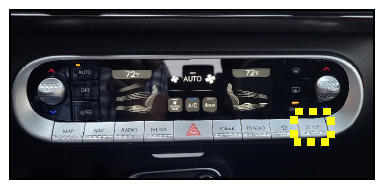

- Press the "Setup" button located on the dashboard.

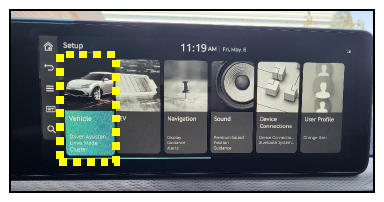

- Select "Vehicle".

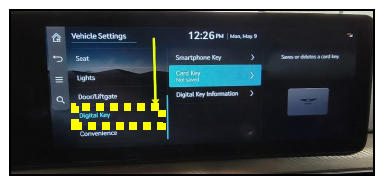

- Scroll down to "Digital Key".
- Select "Card Key".

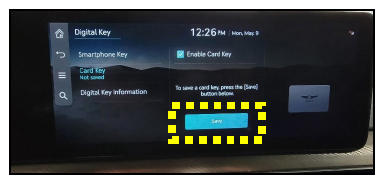

- Select "Enable Card Key" if it is not checked and select "Save".
- Turn IGN OFF and exit vehicle with both the programmed card key and Key FOBs.

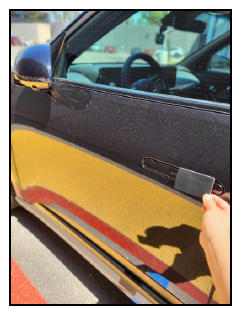

Place the key FOB at least 6 feet away from the vehicle and place the programmed card key to the driver side door handle to confirm that it locks and unlocks the vehicle's doors.
