FixVault
Home
›
Genesis
›
2023
›
GV70 2.5T Advanced
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Integrated Memory System (IMS)
›
IMS Control Switch
›
Connector And Terminal Information
›

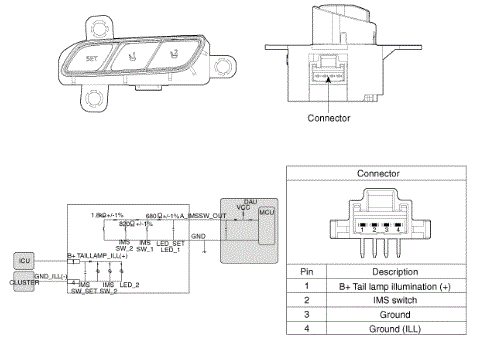

Connector End View And Terminal Description
Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
