Wireless Power Charger System

During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.

Mobile phones certified with the wireless charging standard WPC (Qi 1.1.2) or equipped with an exclusive wireless charging case can be used.

Information

• WPC: Wireless Power Consortium
• Qi 1.1.2: refers to certified product with the capability to transmit power of up to 5W and detect metal and other impurities to prevent heating.

Courtesy of HYUNDAI MOTOR AMERICA

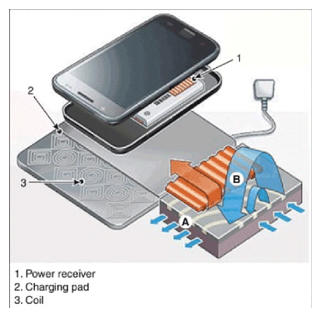

1. Power receiver: embedded with the secondary coil designed to receive the induced current from the charging pad.
2. Charging pad: electrical coils wound inside the plastic cover.
3. Coil: Rectangular and circular coils generate diverse electromagnetic fields.
   1. Connect power to the charging pad to generate electromagnetic fields in the coil.
   2. Current induced from electromagnetic induction phenomenon is sent to the power receiver to charge the battery.
