Home › Genesis › 2023 › GV70 2.5T Advanced › Repair and Diagnosis › Engine Mechanical › Fuel System › Fuel Delivery System - 2.5L › Low Pressure Fuel Pump › Components And Components Location › Components

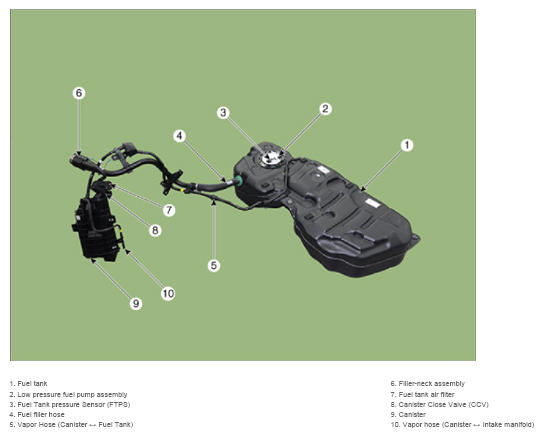

Components And Components Location: Components

G14763925Courtesy of HYUNDAI MOTOR AMERICA
