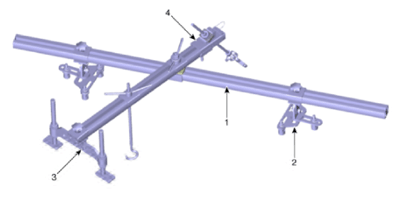

Engine Support Fixture Assembly Drawing

Courtesy of HYUNDAI MOTOR AMERICA

Information

• When using the adapter (09200-C3620), check the specified angle for each engine type.

2.5 T-GDI (B:40°)	G 3.5 T-GDI (B:40°)	D 2.2 TCI (B:40°)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
