Home › Genesis › 2023 › GV70 2.5T Advanced › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transmission Assembly - 2.5L › Engine Mounting › Components & Components Location › Components

Components & Components Location: Components

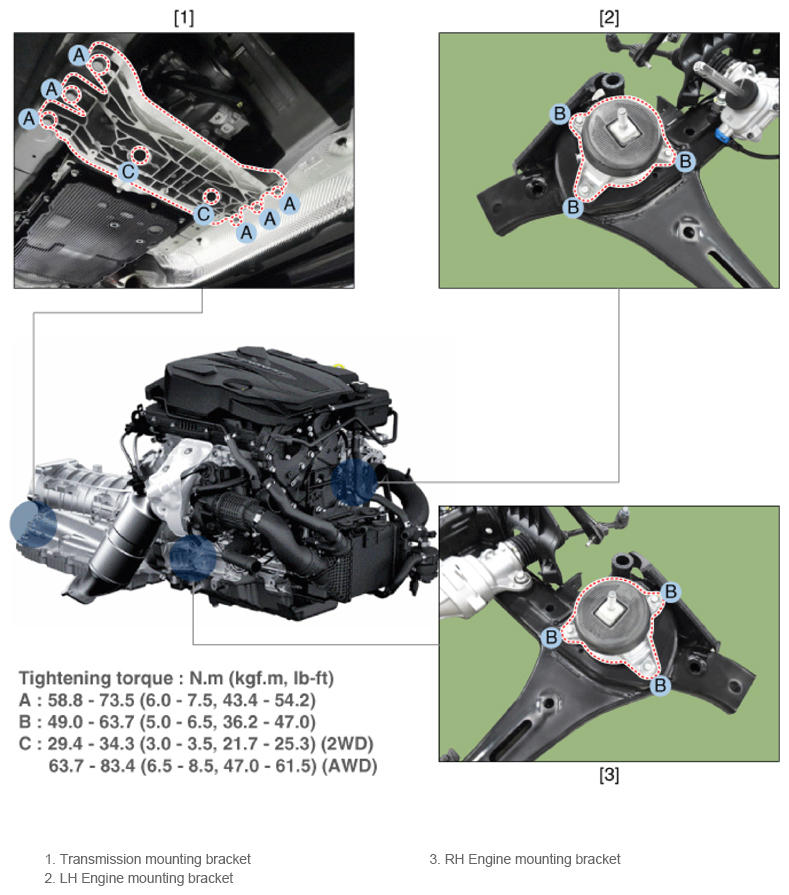

Fig 1: Engine Mounting Components Location With Torque Specifications
G14752429Courtesy of HYUNDAI MOTOR AMERICA
