Removal And Installation: Removal
CAUTION:
Handling wireless charging system parts by wet hands may cause electric shock.
- Disconnect the negative (-) battery terminal.
- Remove the floor console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

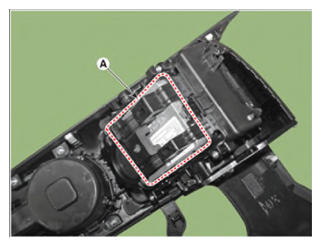

- Remove the wireless power charger unit (A) after disconnecting the connector.
