Checking Stationary Steering Effort
Checking Stationary Steering Effort
Position the vehicle on a level surface and place the steering wheel in the straight ahead position.

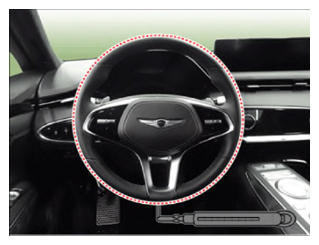

Attach a spring scale to the steering wheel. With the idle RPM, pull the scale and read it as soon as the tires begin to turn.
Standard value:
3.0 kgf
Courtesy of HYUNDAI MOTOR AMERICA
