Steering Column Module (SCM) Switch
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

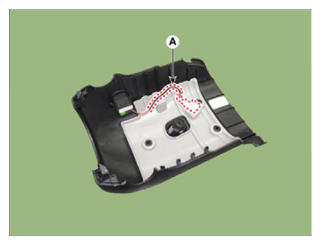

- Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

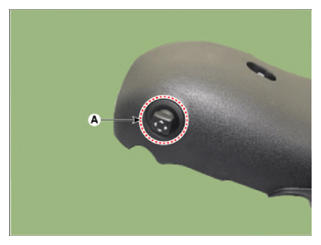

- Disconnect the steering module switch connector and clip (A).
- Using the (-) driver, remove the steering column module switch.
- To install, reverse the removal procedures.
