TPS 2

Item Duty (%) Output Voltage (V) [Supply Voltage = 5V]
Full Close (C.T) 89.2 - 90.8% 4.46-4.54
Full Open (W.O.T) 10.2 - 13.3% 0.51 - 0.67

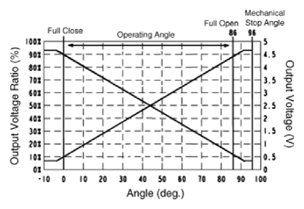

G14766333Courtesy of HYUNDAI MOTOR AMERICA
