Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

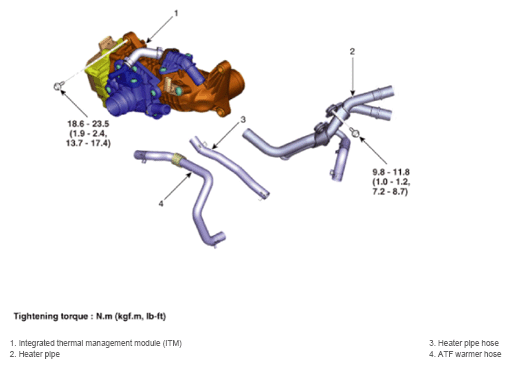

Fig 1: Integrated Thermal Management Module Components Location With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
