Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.

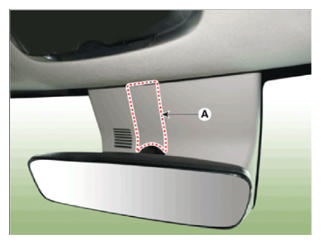

- Remove the inside rear view mirror cover (A).

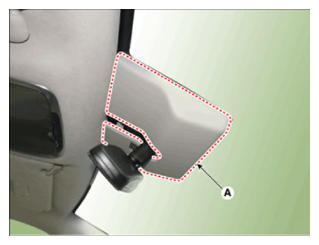

- Remove the rain sensor cover (A).

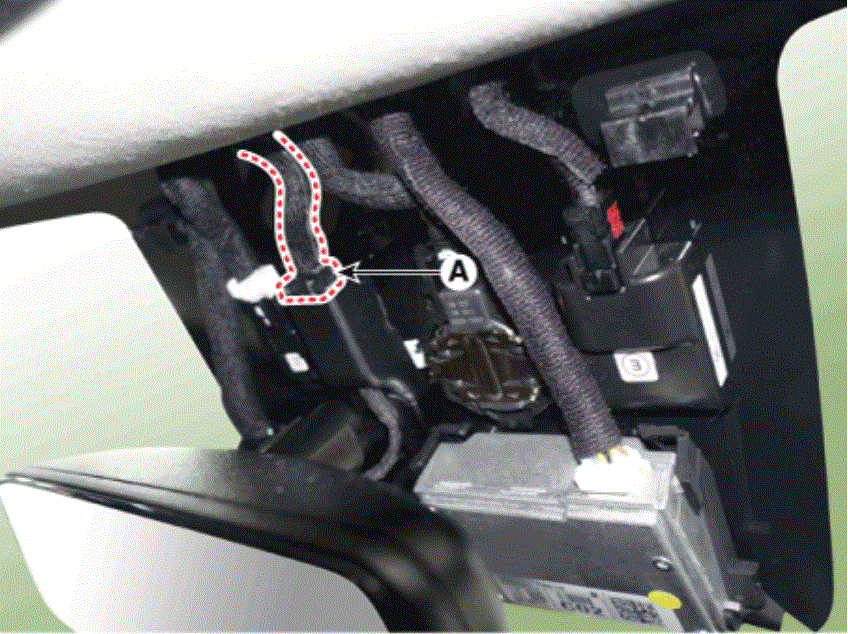

- Press the lock pin and separate the inside rear view mirror connector (A).

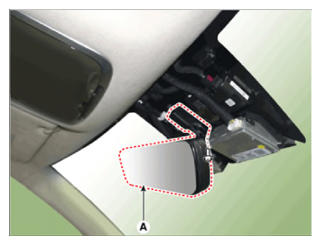

- Loosen the mounting screw and remove the inside rear view mirror assembly (A).
- To install, reverse removal procedure.CAUTION:
- Make sure the connector is connected properly.
- Be careful not to damage the windshield glass.
