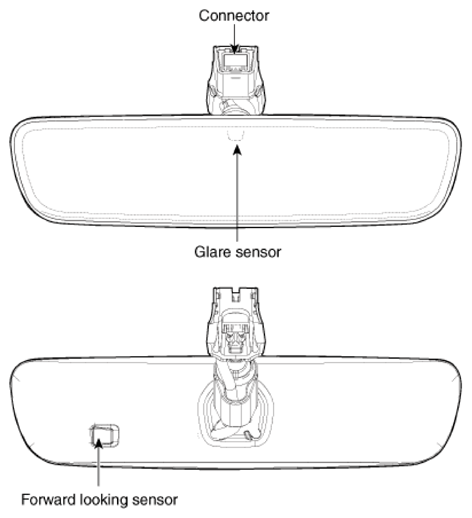

ELECTROCHROMIC Inside Rear View Mirror: Components: Notes

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin	Description	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-	6	IGN
	2	-	7	Reverse inhibit
	3	-	8	Ground
	4	OEC (+}	9	OEC (-)
	5	-	10	-
