Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the front seat.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

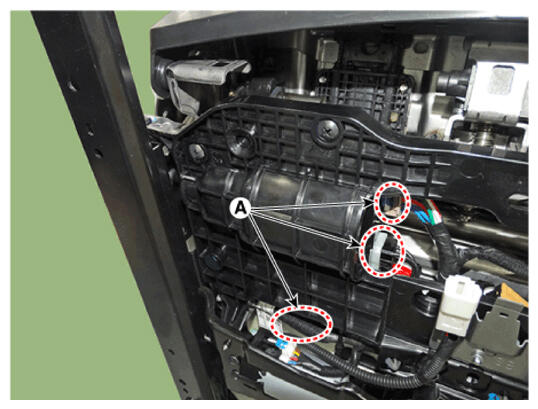

Disconnect the power seat module connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

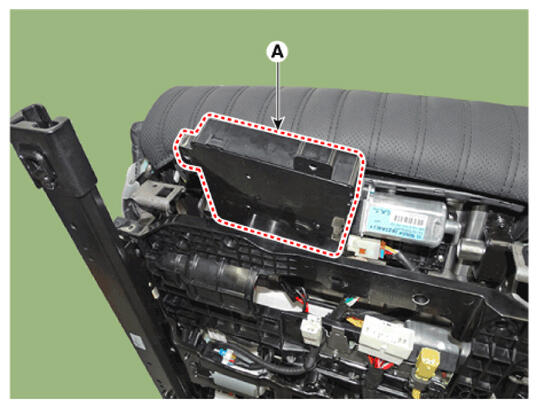

Loosen the mounting screws and then remove the IMS unit (A).

Courtesy of HYUNDAI MOTOR AMERICA
