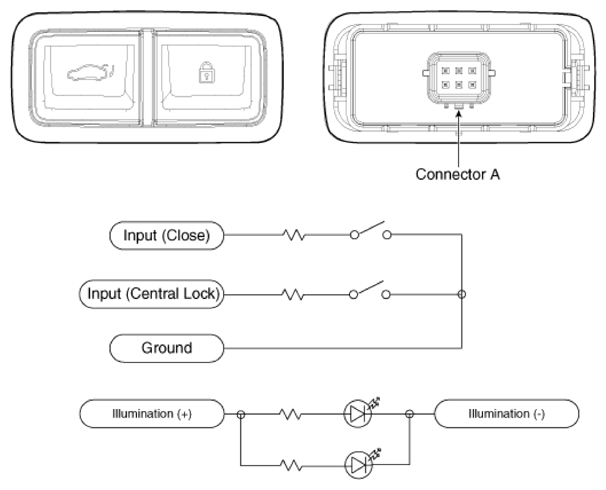

Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Central Lock
	2	-
	3	Trunk close
	4	Illumination (+)
	5	Ground
	6	Illumination (-)
